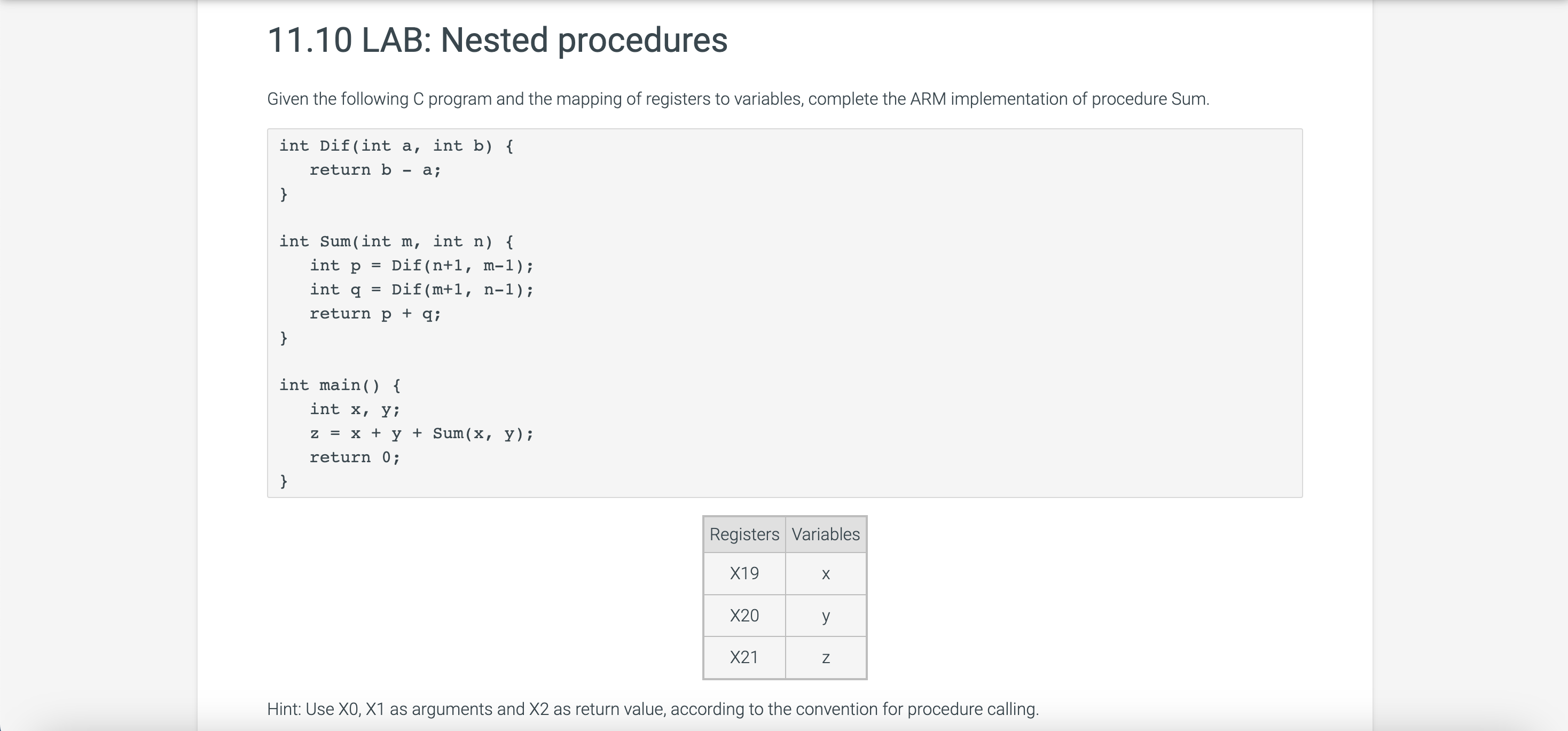

Unconditional jump: B$,$ BL$,$ BR $11\mathrm{.}10$ LAB: Nested procedures

Given the following C program and the mapping of registers to variables, complete the ARM implementation of procedure Sum.

int Dif$($int a$,$ int b$)\{$

return b $-$ a;

$\}$

int Sum$($int m$,$ int n$)\{$

int p $=$ Dif$($n$+1,$ m$-1)$;

int q $=$ Dif$($m$+1,$ n$-1)$;

return p $+$ q;

$\}$

int main$()\{$

int x$,$ y;

z $=$ x $+$ y $+$ Sum$($x$,$ y$)$;

return $0$;

$\}$

Hint: Use $x0,x1$ as arguments and X $2$ as return value, according to the convention for procedure calling.
