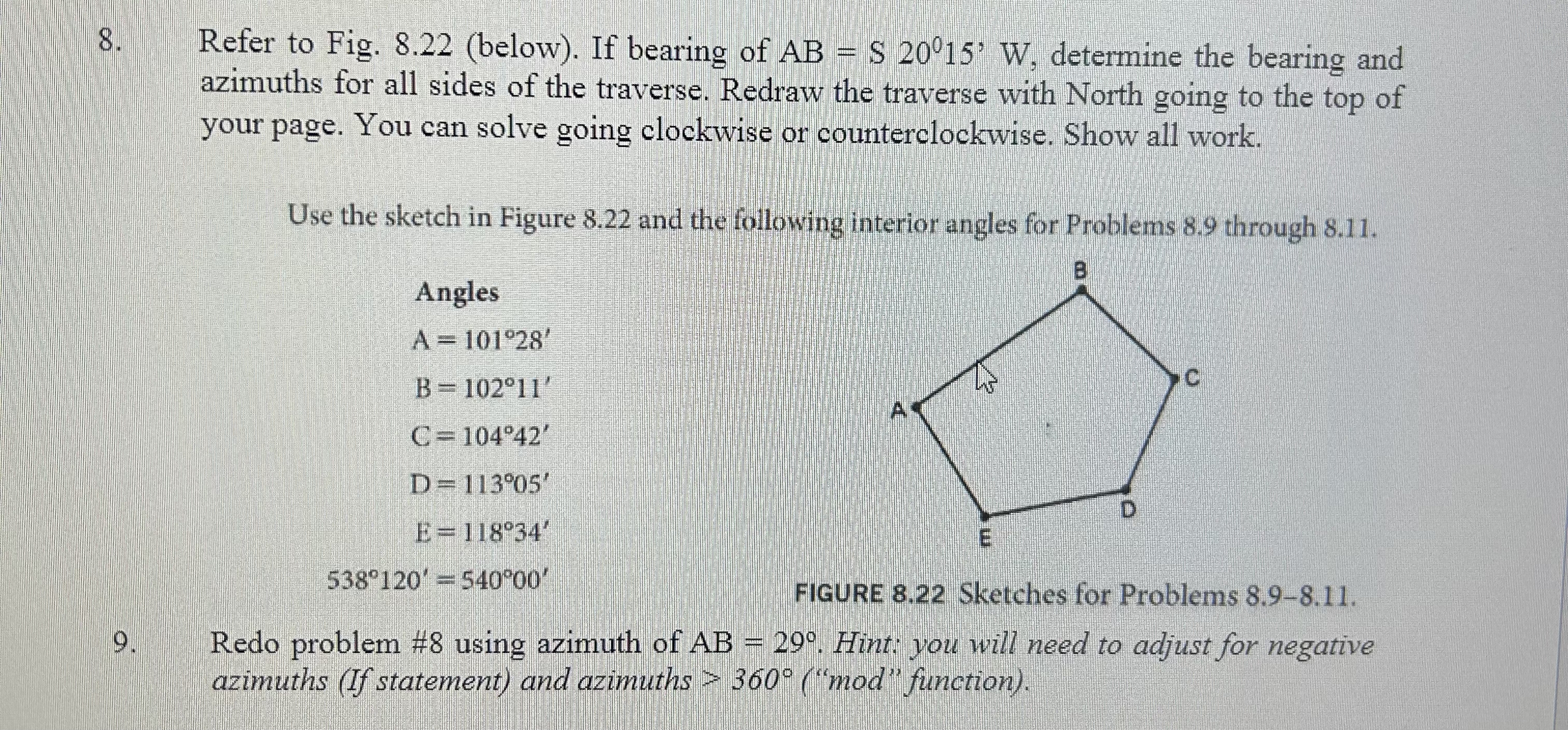

Refer to Fig. $8\mathrm{.}22($below$).$ If bearing of $AB=S20{15}^{\text{'}}$ W$,$ determine the bearing and

azimuths for all sides of the traverse. Redraw the traverse with North going to the top of

your page. You can solve going clockwise or counterclockwise. Show all work.

Use the sketch in Figure $8\mathrm{.}22$ and the following interior angles for Problems $8\mathrm{.}9$ through $8\mathrm{.}11.$

Angles

$A=101{28}^{\text{'}}$

$B=102{11}^{\text{'}}$

$C=104{42}^{\text{'}}$

$D=113{05}^{\text{'}}$

$E=118{34}^{\text{'}}$

$538{120}^{\text{'}}=540{00}^{\text{'}}$

FIGURE $8\mathrm{.}22$ Sketches for Problems $8\mathrm{.}9-8\mathrm{.}11.$

Redo problem #$8$ using azimuth of $AB=29.$ Hint: you will need to adjust for negative

azimuths $($If statement$)$ and azimuths
