Reference; AC/DC ELECTRONICS LABORATORY MANUAL

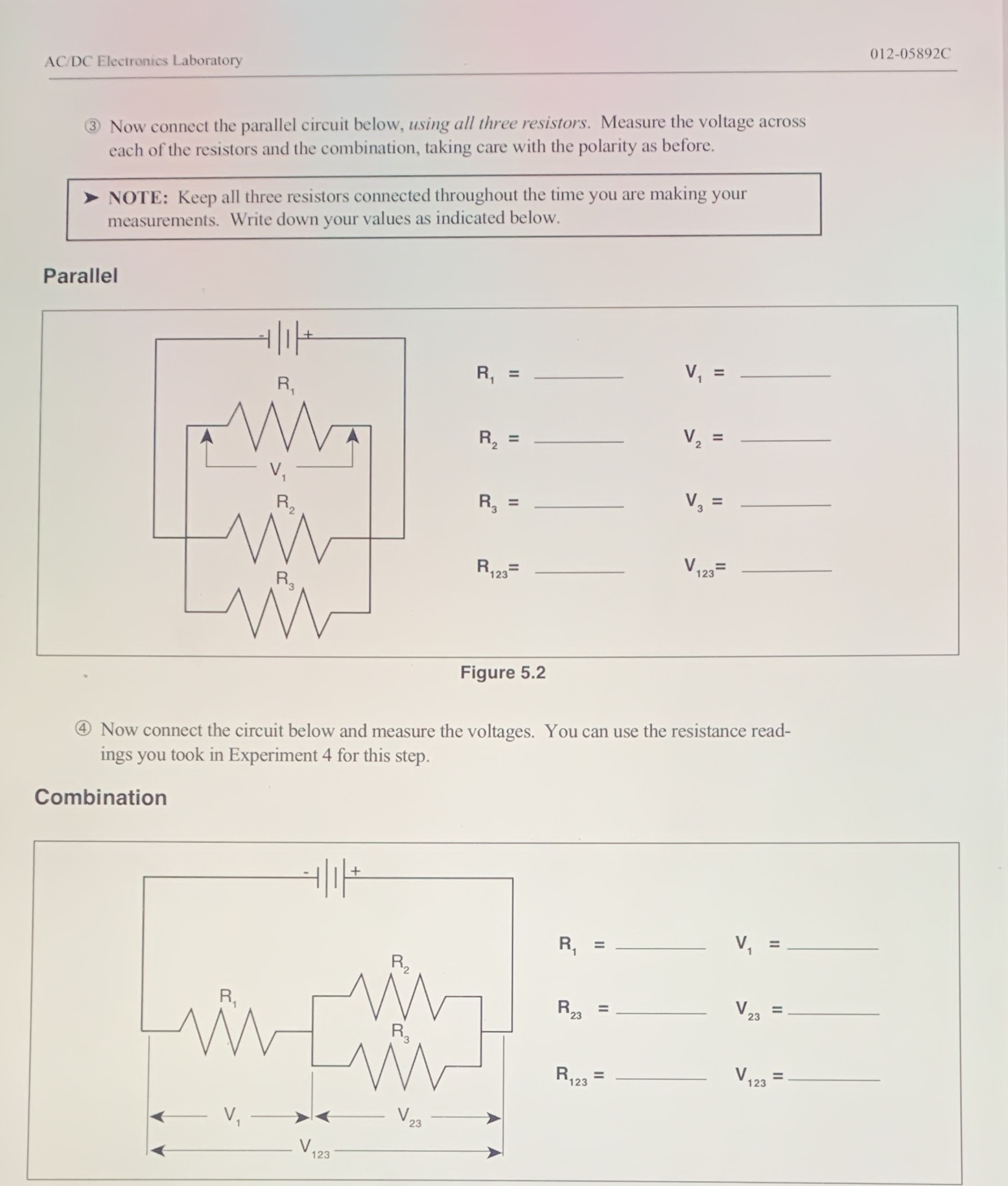

012-05892C AC/DC Electronics Laboratory (3) Now connect the parallel circuit below, using all three resistors. Measure the voltage across each of the resistors and the combination, taking care with the polarity as before. > NOTE: Keep all three resistors connected throughout the time you are making your measurements. Write down your values as indicated below. Parallel R, = V, = R , R, = V. = V, R R, = R 123 V 123 Figure 5.2 4 Now connect the circuit below and measure the voltages. You can use the resistance read- ings you took in Experiment 4 for this step. Combination V. R23 V23 R 123 = V 123 = V 23 123
