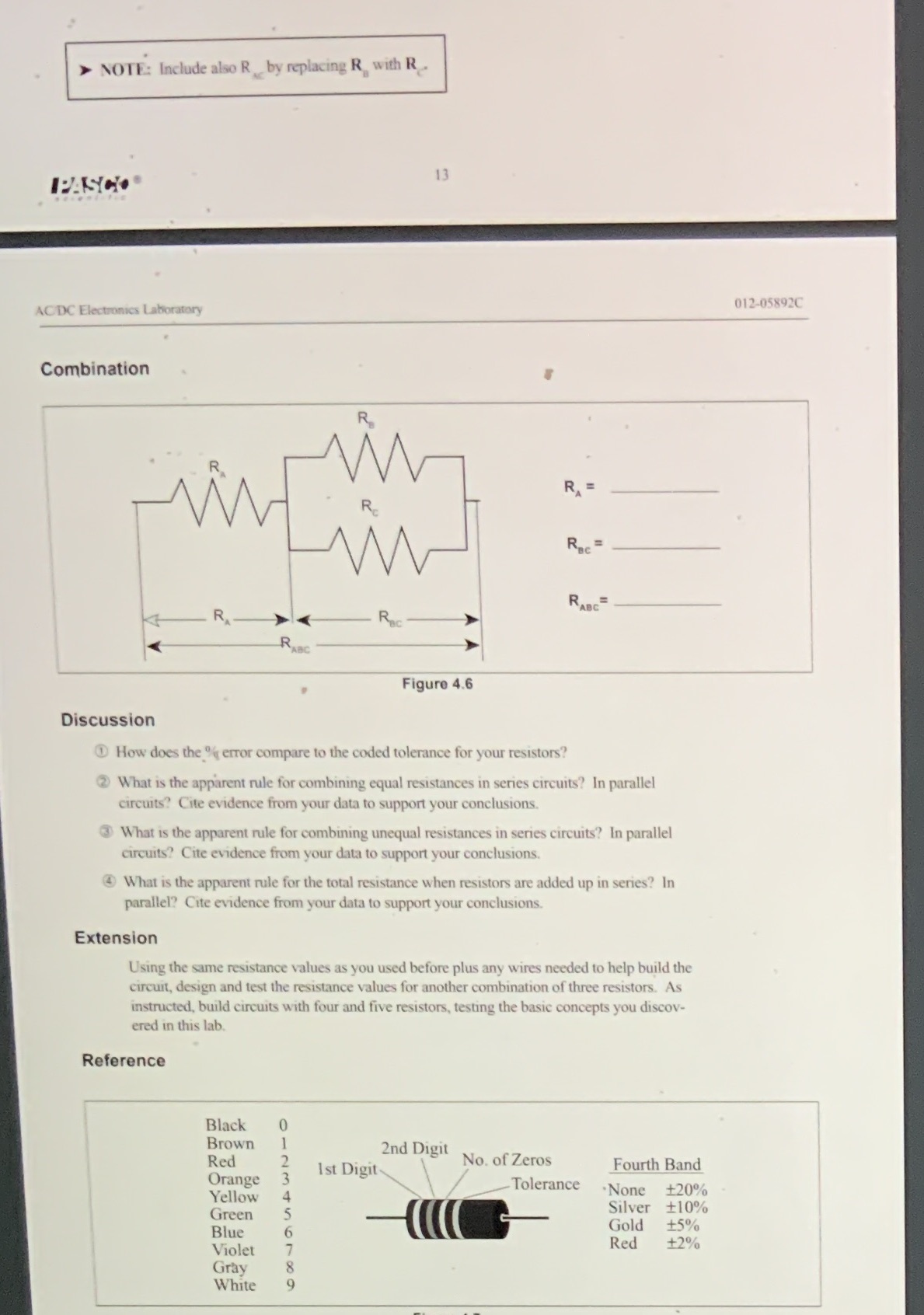

Reference; AC/DC ELECTRONICS LABORATORY MANUALExperiment 4 ; Resistances in circuits

> NOTE: Include also R, by replacing R with R. PASCO 13 012-05892C ACDC Electronics Laboratory Combination R R. = R RABC R RABC Figure 4.6 Discussion How does the % error compare to the coded tolerance for your resistors? 2 What is the apparent rule for combining equal resistances in series circuits? In parallel circuits? Cite evidence from your data to support your conclusions. What is the apparent rule for combining unequal resistances in series circuits? In parallel circuits? Cite evidence from your data to support your conclusions. What is the apparent rule for the total resistance when resistors are added up in series? In parallel? Cite evidence from your data to support your conclusions. Extension Using the same resistance values as you used before plus any wires needed to help build the circuit, design and test the resistance values for another combination of three resistors. As instructed, build circuits with four and five resistors, testing the basic concepts you discov ered in this lab. Reference Black O Brown 2nd Digit Red Orange Ist Digit No. of Zeros Fourth Band Tolerance Yellow . None +20% Green Silver +10% Blue Gold +5% Violet Red +2% Gray White
