Question: Replace the distributed loading shown in ( Figure 1 ) by an equivalent resultant force. Suppose that ( w _ { 1 } =

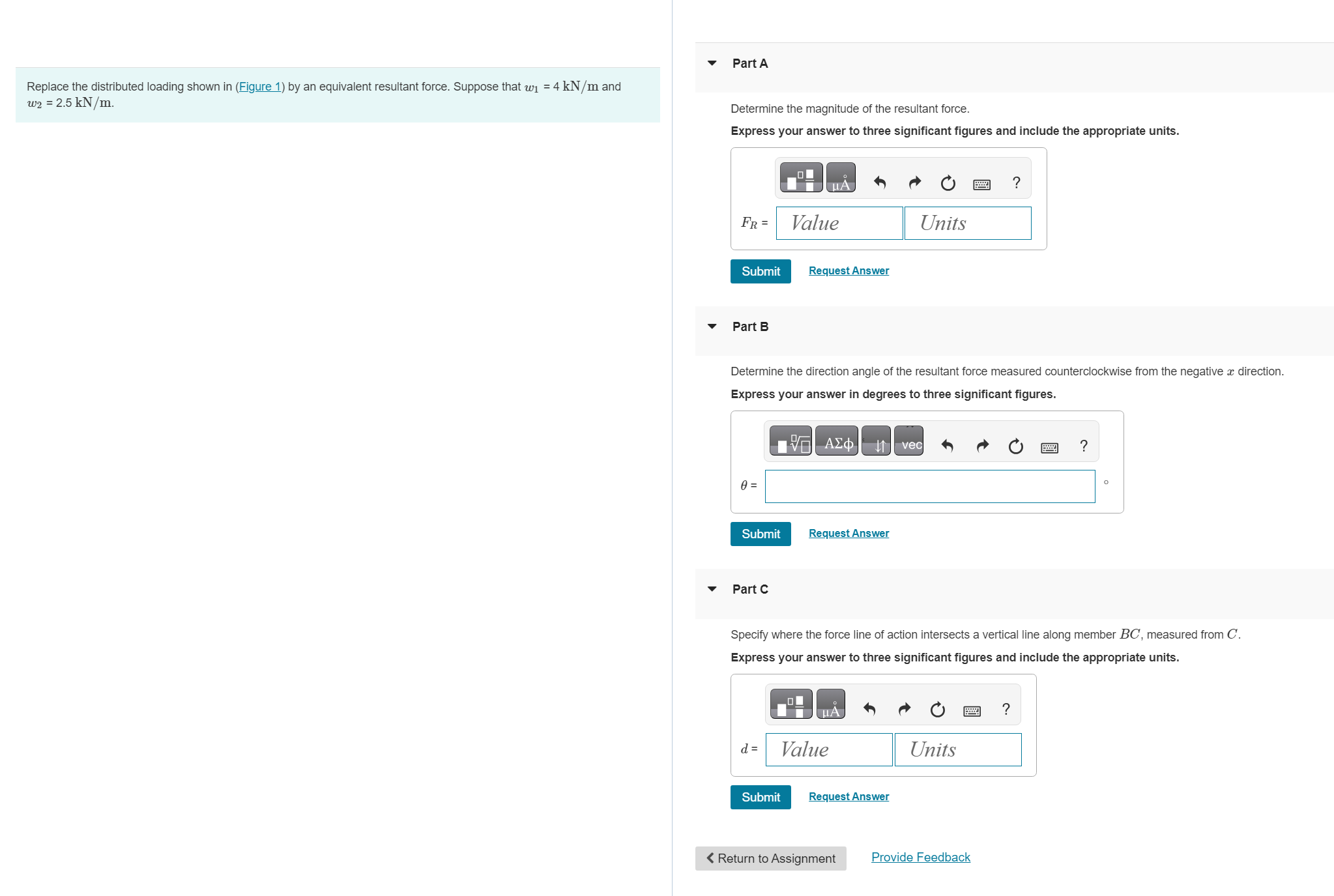

Replace the distributed loading shown in (Figure 1) by an equivalent resultant force. Suppose that \( w_{1}=4\mathrm{kN}/\mathrm{m}\) and \( w_{2}=2.5\mathrm{kN}/\mathrm{m}\).
Part A
Determine the magnitude of the resultant force.
Express your answer to three significant figures and include the appropriate units.
Part B
Determine the direction angle of the resultant force measured counterclockwise from the negative \( x \) direction.
Express your answer in degrees to three significant figures.
Request Answer
Part C
Specify where the force line of action intersects a vertical line along member \( B C \), measured from \( C \).
Express your answer to three significant figures and include the appropriate units.
Request Answer
Replace the distributed loading shown in ( Figure

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Replace the distributed loading shown in ( Figure 1 ) by an equivalent resultant force. Suppose that w 1 = 4 k N m and w 2 = 1 k N m . Figure 1 of 1 Part A Determine the magnitude of the resultant...

Q:

Replace the loading shown in ( Figure 1 ) by an equivalent resultant force and couple moment acting at point \ ( A \ ) . Suppose that \ ( w = 7 5 0 \ mathrm { ~N } / \ mathrm { m } \ ) . Figure Part...

Q:

Replace the force system acting on the frame shown in (Figure 1) by an equivalent resultant force. Part A Determine the direction of the equivalent resultant force. Express your answer in degrees to...

Q:

Replace the loading (Figure 1) by an equivalent resultant force and couple moment at point (). Suppose that F, = (61 - 2k) KN and Fa = {-21 + 3j - 3k) kN.\fPart A Determine the resultant force. Enter...

Q:

Replace the loading ( Figure 1 ) by an equivalent resultant force and couple moment acting at point O . Suppose that w = 7 5 l b f t . Figure PartA Determine the resultant force. Express your answer...

Q:

Part A Replace the loading by an equivalent resultant force and couple moment acting at point O. Suppose that w1 = 9 kN/m and w2 = 4.5 kN/m . (Figure 1) Determine the equivalent resultant force....

Q:

Figure 1 ) Replace the loading acting on the beam shown in ( Figure 1 ) by a single resultant force. Take F 1 = 4 5 0 N , F 2 = 3 0 0 N , and F 3 = 6 0 0 N . Determine the magnitude of the resultant...

Q:

Replace the loading acting on the beam ( Figure 1 ) by a single resultant force. Suppose that F 1 = 5 0 0 N , F 2 = 3 2 0 N , and F 3 = 7 5 0 N . Determine the magnitude of the resultant force....

Q:

Replace the loading acting on the beam (Figure 1) by a single resultant force. Suppose that F = 500 N, F = 320 N, and F3 = 750 N. Figure 60 F1 F2 F3 B 1500 N-m 4 m -3 m 2m

Q:

Replace the loading acting on the beam shown in (Figure 1) by a single resultant force. Take F1 = 450 N , F2 = 350 N , and F3 = 700 N . Figure1 of 1 A beam of length 9 meters extends to the right...
