Question: Replace the loading acting on the beam ( Figure 1 ) by a single resultant force. Suppose that F 1 = 5 0 0 N

Replace the loading acting on the beam (Figure 1) by a single resultant force. Suppose that F1=500 N, F2=320 N, and F3=750 N. Determine the magnitude of the resultant force. Determine the angle between the resultant force and the x axis. Specify where the force acts, measured from B.
Replace the loading acting on the beam ( Figure 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Replace the loading acting on the beam ( Figure 1 ) by a single resultant force. Suppose that F 1 = 4 0 0 N , F 2 = 3 0 0 N , and F 3 = 7 5 0 N . Part A Determine the magnitude of the resultant...

Q:

Part A Replace the loading acting on the beam ( Figure 1 ) by a single resultant force. Suppose that \ ( F _ { 1 } = 4 5 0 \ mathrm { ~N } \ ) , \ ( F _ { 2 } = 3 0 0 \ mathrm { ~N } \ ) , and \ ( F...

Q:

Replace the loading acting on the beam ( Figure 1 ) by a single resultant force Suppose that F 1 = 5 0 0 N . P 2 = 3 0 0 N and F 3 = 7 5 0 N Figure 1 of 1 PartA Determine the magnitude of the...

Q:

Replace the loading acting on the beam ( Figure 1 ) by a single resultant force. Suppose that F 1 = 5 0 0 N , F 2 = 3 0 0 N , and F 3 = 7 0 0 N . A ) Determine the magnitude of the resultant force....

Q:

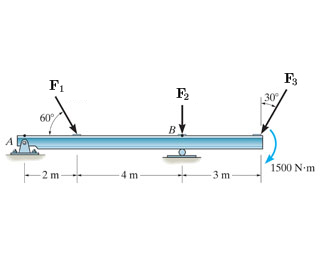

Replace the loading acting on the beam (Figure 1) by a single resultant force. Suppose that F = 500 N, F = 320 N, and F3 = 750 N. Figure 60 F1 F2 F3 B 1500 N-m 4 m -3 m 2m

Q:

Replace the loading shown in ( Figure 1 ) by a single resultant force. Suppose that w = 3 5 0 N m Figure Part A Determine the resultant force. Express your answer to three significant figures and...

Q:

Replace the loading shown in ( Figure 1 ) by a single resultant force. Suppose that w = 8 0 0 N m . Part A Determine the resultant force. Express your answer to three significant figures and include...

Q:

Replace the loading shown in ( Figure 1 ) by a single resultant force. Suppose that w = 7 5 0 N m . Figure 1 of 1 Part A Determine the resultant force

Q:

Replace the loading on the frame in Fig. 1 by a single resultant force. A crate weighted 2 0 N is held by a spring at point D . Specify where its line of action intersects member CD , measured from...

Q:

Figure 1 ) Replace the loading acting on the beam shown in ( Figure 1 ) by a single resultant force. Take F 1 = 4 5 0 N , F 2 = 3 0 0 N , and F 3 = 6 0 0 N . Determine the magnitude of the resultant...
