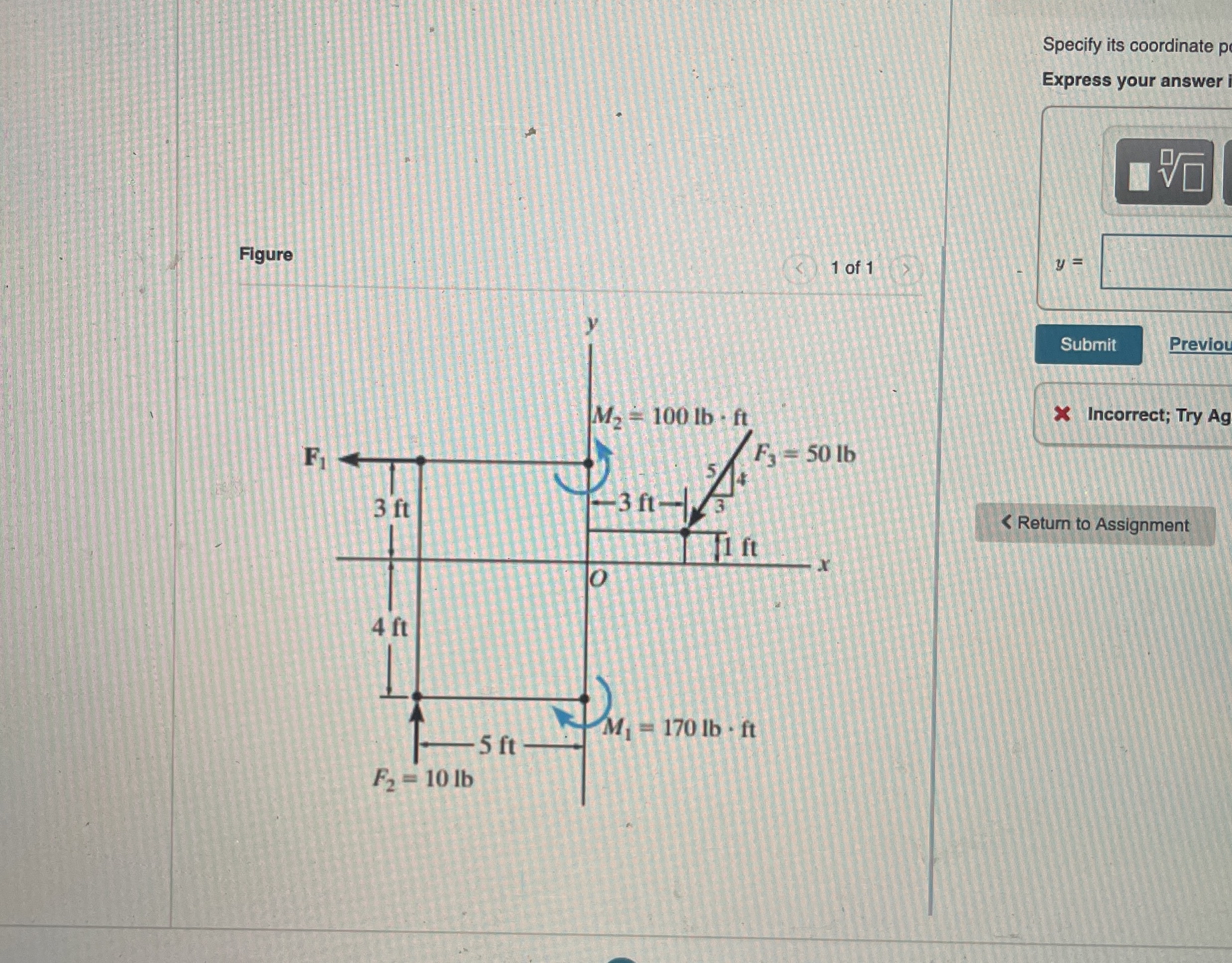

Question: Replace the force and couple moment system by an equivalent resultant force ( Figure 1 ) . Assume F 1 = 3 6 l b

Replace the force and couple moment system by an

equivalent resultant force

(

Figure

1) .

Assume

F_{1} = 36 l b .

Part A

Determine the magnitude of the equivalent resultant force.

Express your answer in pounds to three significant figures.

F_{R} =

Incorrect; Try Again

Part B

Determine the direction of the equivalent resultant force.

Express your answer in degrees to three significant figures.

,

measured clockn

x

axis.

Figur

Replace the force and couple moment system by an

equivalent resultant force

(

Figure

1) .

Assume

F_{1} = 36 l b .

Part A

Determine the magnitude of the equivalent resultant force.

Express your answer in pounds to three significant figures.

F_{R} =

Incorrect; Try Again

Part B

Determine the direction of the equivalent resultant force.

Express your answer in degrees to three significant figures.

,

measured cloc

x

axis.

Replace the force and couple moment system by an

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Replace the force and couple moment system acting on the beam by an equivalent resultant force and couple moment at point A (Figure 1). Suppose that F = 660 N, F = 280 N, and M = 300 N. m. Determine...

Replace the force and couple moment system acting on the beam by an equivalent resultant force and couple moment at point A (Figure 1). Suppose that F = 660 N, F = 280 N, and M = 300 N-m Determine...

Handwritten solution required ,Don't copy?? CoursHeroTranscribedText: Replace the force and couple moment system acting on the beam by an equivalent resultant force and couple moment at point O ....

Replace the force and couple moment system acting on the beam by an equivalent resultant force and couple moment at point O. 0.2 m -1.5m 30 500 N -2m 15 -1.5 m- 200 N 200 N-m X

Replace the force and couple moment system acting on the overhang beam by a resultant force, and specify its location along AB measured from point A. 0.3 m -2 m- 30 kN 30 45 kN m 1 m 26 kN 12 13 -2...

Replace the force and couple moment system acting on the beam by an equivalent resultant force and couple moment at point O (Figure 1). Suppose that F1 = 600 N, F2 = 240 N, and M = 200 N?m -...

Part A Replace the loading acting on the beam by a single resultant force. (Figure 1) Determine the magnitude of the resultant force, if F1 = 450 N, F2 = 330 N, and F3 = 710 N Express your answer to...

Replace the force and couple system acting on the member in in the figure by an equivalent resultant force and couple moment acting at point O. 500 N 750 N 200 N 1 m 1 m -1.25 m 1.25 m 200 N

Y Replace the loading by an equivalent resultant force. (Figure 1) Suppose that - 151b/ft, w 4 lb/ft, and F = 80 b. Part A Detormine the magnitude of the resultant force Express your answer in pounds...
