Question: Replace the force system acting on the frame by a resultant force and couple moment at point A . Take F 1 = 6 kN

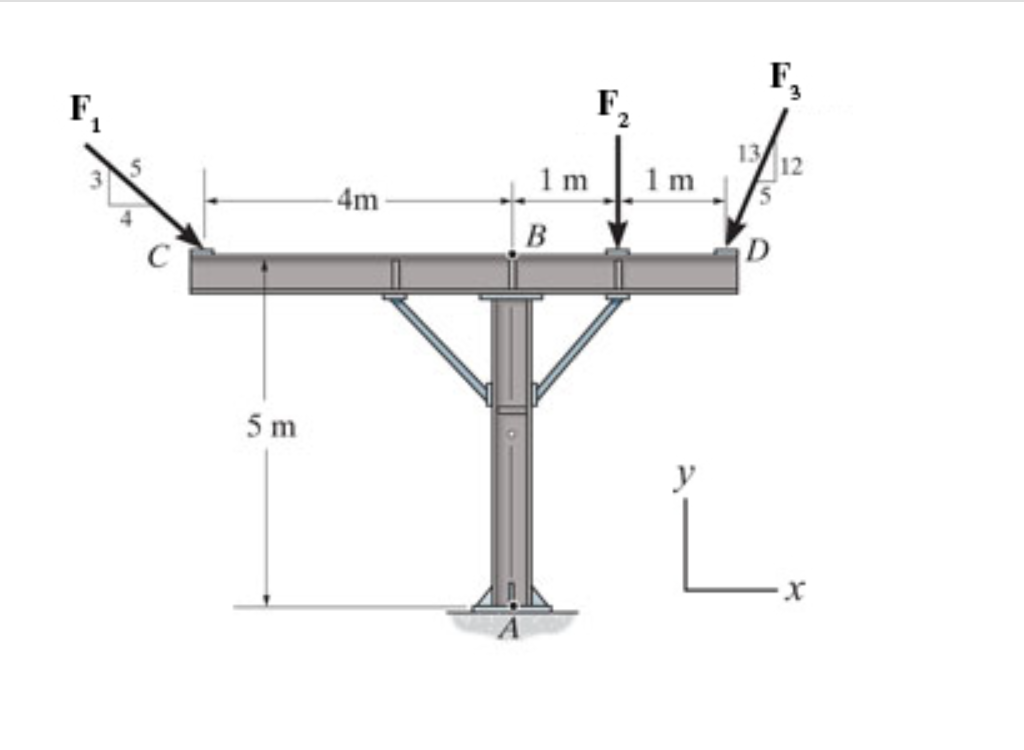

Replace the force system acting on the frame by a resultant force and couple moment at point A. Take F1=6 kN , F2=4 kN, F3=4 kN.
Replace the force system acting on the frame by a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
