Question: Replace the force system acting on the post by a resultant force and couple moment at point O . Take F 1 = 3 2

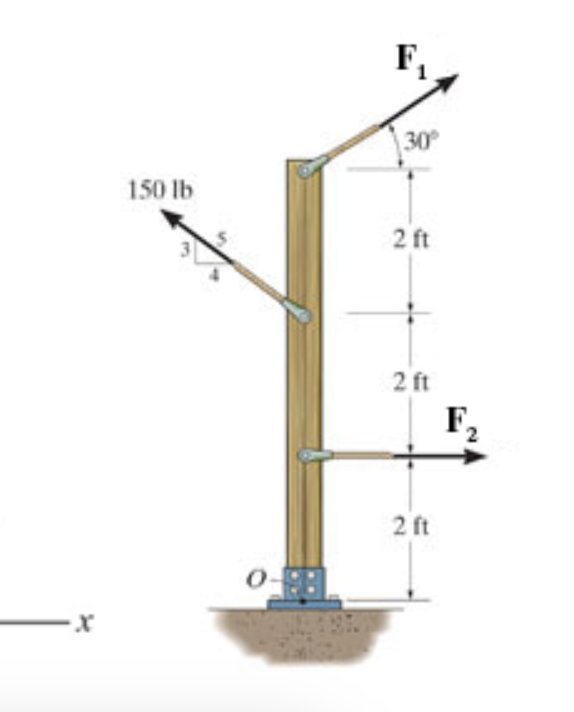

Replace the force system acting on the post by a resultant force and couple moment at point O. Take F1=320 lb and F2=200 lb .
- Determine the magnitude of the resultant force.
- Determine the angle between the resultant force and the xx axis.
Replace the force system acting on the post by a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Replace the force system acting on the truss by a resultant force and couple moment at pointC. 200 lb 150 lb 100 Ib -2 ft- -2 ft 500 lb 6 ft

Q:

Replace the force system acting on the post by a resultant force and a couple moment at point A. 500 N B 0.5 m 1 m 30 1 m 1 m A 0.2 m FI=250 N F300 N The magnitude of the resultant force: |FR| = N...

Q:

Replace the force system acting on the post by a resultant force and couple moment at point O. 300 lb 30 150 lb 2 ft 2 ft 200 lb 2 ft in

Q:

Replace the force system acting on the truss by a resultant force and couple moment at point C. 6 ft 200 lb PC 150 lb -2 ft-2 ft2 ft- A O 100 lb -2 ft- B 5 500 lb

Q:

Replace the force system acting on the post by a resultant force and couple moment at pointA. 0.5 m B, . 500 N 1 m 30 0.2 m 250 N 300 N

Q:

Replace the force system acting on the post by a resultant force and coruple moment at point O . Take F 1 = 3 3 5 l b and F 2 = 2 1 0 l b . ( Figure 1 ) gure

Q:

Replace the two forces acting on the post by a resultant force and couple moment at point O. Express the results in Cartesian vectorform. F = 5 kN Fp=7 kN. 6 m 3 m. 6 m.

Q:

Replace the force system acting on the post by a resultant force(Figure 1). Part A Figure 0.5 m B 1 m 500 N 30 0.2 m 250 N 1 m 1 m A 300 N 1 of 1 Determine the direction of the resultant force....

Q:

Replace the force system acting on the post by a resultant force, and specify where its line of action intersects the post AB measured from pointA. 0.5 m B. 500 N 1m 250 N 0.2 m 30 1m 300 N 1m

Q:

Replace the force system acting on the post by a resultant force, and specify where its line of action intersects the post AB measured from pointB. 0.5 m B. 500 N 250 N 0.2 m 30 300 N
