Question: Replace the force system by a single force resultant and specify its coordinate point of application ) on the x - axis. Determine the resultant

Replace the force system by a single force resultant and specify its coordinate point of application ) on the x -axis.

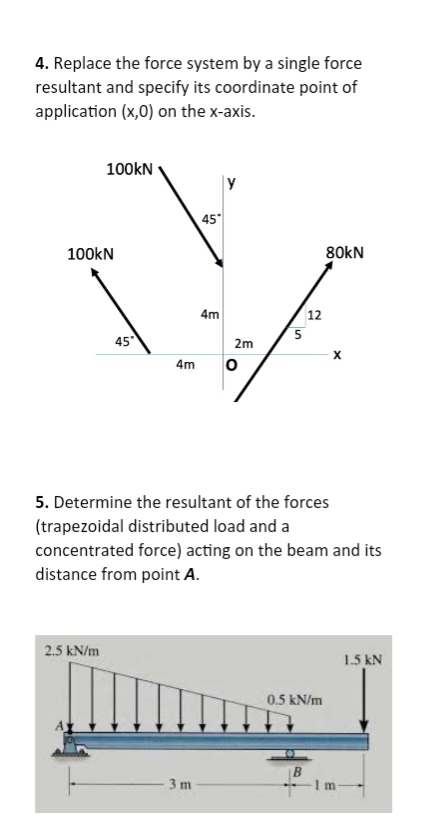

Determine the resultant of the forces (trapezoidal distributed load and a concentrated force) acting on the beam and its distance from point A.
Replace the force system by a single force

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Replace the force system by a single force resultant and specify its coordinate point of application ( x , 0 ) on the x - axis.

Q:

QUESTION 4 : 4 - 5 8 . Replace the force system by a single force resultant and specify its coordinate point of application ( x , 0 ) on the x axis Replace the force system by a single force...

Q:

Replace the force system by a single force resultant and specify its point of application, measured along the x axis from point P. Given: F1 = 125 lb a = 2 ft F2 = 350 lb b = 6 ft F3 = 850 lb c = 3...

Q:

Replace the force system by a single force resultant and specify its point of application, measured along the x axis from point O. Given: F1 = 125 lb F2 = 350 lb F3 = 850 lb a = 2 ft b = 6 ft c = 3...

Q:

QUESTION 1 : Replace the force system by a single force resultant and specify its point of application, measured along the x - axis from a ) point O . b ) point A .

Q:

Replace the force system by a single force resultant and specify its point of application, measured along the x - axis from P 1 : 5 4 0 N P 2 : 1 1 1 0 N P 3 : 7 9 5 N P 4 : 1 2 6 0 N a ) point O . b...

Q:

4-34. Replace the force system by a single force resultant and specify its point of application measured from point O. y 4 kN 2 kN 4 m T 2 m 0 1 m Prob. 4-34 3 kN

Q:

Part A ( ASSUME F 1 = 3 4 lb ) * * * updated * * * * Determine the magnitude of the equivalent resultant force. Express your answer in pounds to three significant figures. F R = Part B Determine the...

Q:

Part A Determine the magnitude of the equivalent resultant force. Express your answer in pounds to three significant figures. F R = Part B Determine the direction of the equivalent resultant force....

Q:

Replace the force system by an equivalent resultant force and couple moment at point (. Suppose that Fi = 455 N and F = 700 N . :25m 2m 0.75 m 0.75 m Part A Determine the magnitude of the resultant...
