Question: Replace the force system by a single force resultant and specify its point of application, measured along the x - axis from P 1 :

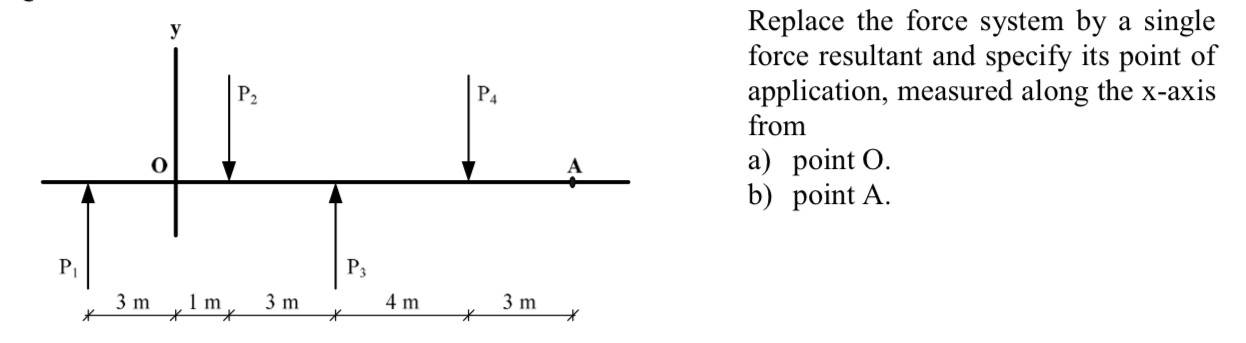

Replace the force system by a single force resultant and specify its point of application, measured along the x-axis from
P1: 540 N
P2: 1110 N
P3: 795 N
P4: 1260 N
a) point O.
b) point A.
Replace the force system by a single force
