Question: Replace the given loads with an equivalent force - couple system at O by specifying the resultant R and couple M 0 . Next, determine

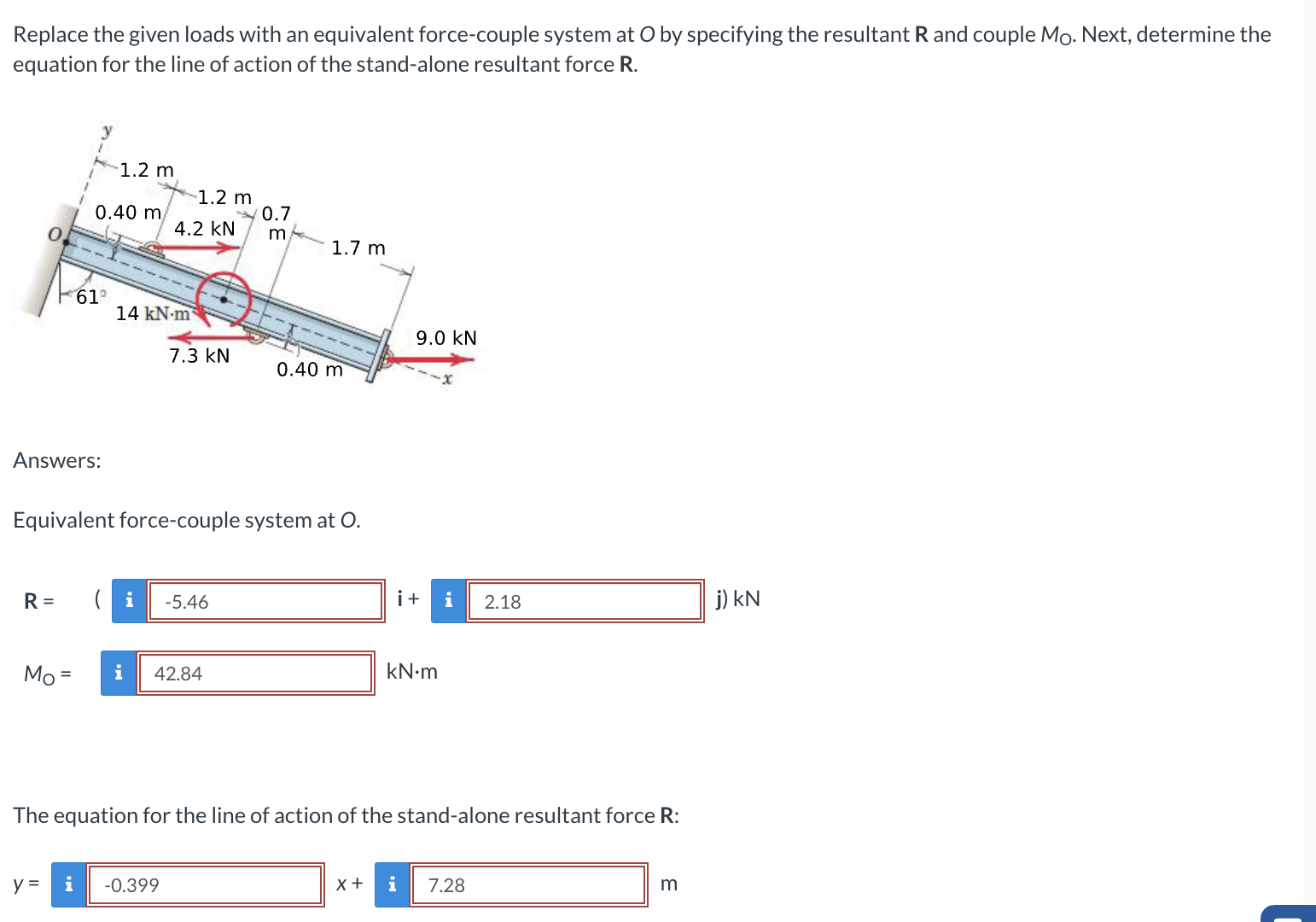

Replace the given loads with an equivalent force-couple system at O by specifying the resultant R and couple M0. Next, determine the
equation for the line of action of the stand-alone resultant force R.
Answers:
Equivalent force-couple system at O.
R=(i+j)kN
MO=ikN*m
The equation for the line of action of the stand-alone resultant force R :
y=-,|x+,m
Replace the given loads with an equivalent force

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
