Question: Replace the loading acting on the beam ( Figure 1 ) by a single resultant force Suppose that F 1 = 5 0 0 N

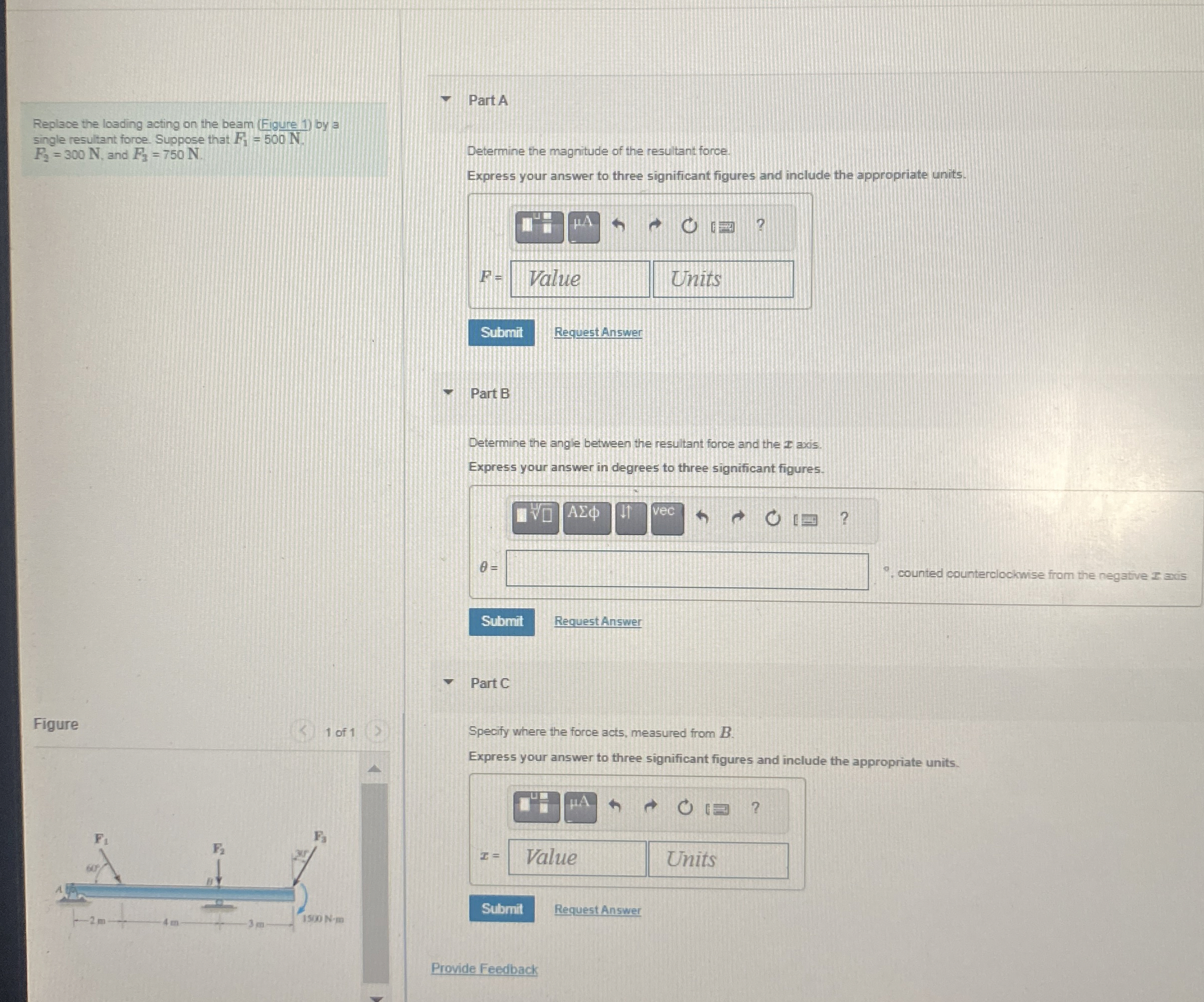

Replace the loading acting on the beam (Figure 1) by a single resultant force Suppose that F1=500N.P2=300N and F3=750N
Figure
1 of 1
PartA
Determine the magnitude of the resulant force
Express your answer to three significant figures and include the appropriate units.
RequestAnswer
PartB
Determine the angle between the resultant force and the x axis.
Express your answer in degrees to three significant figures.
(4)
=
sin
Request Answer
Part C
Specify where the force acts, measured from B.
Express your answer to three significant figures and include the appropriate units.
Provide Feedback
Replace the loading acting on the beam ( Figure 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
