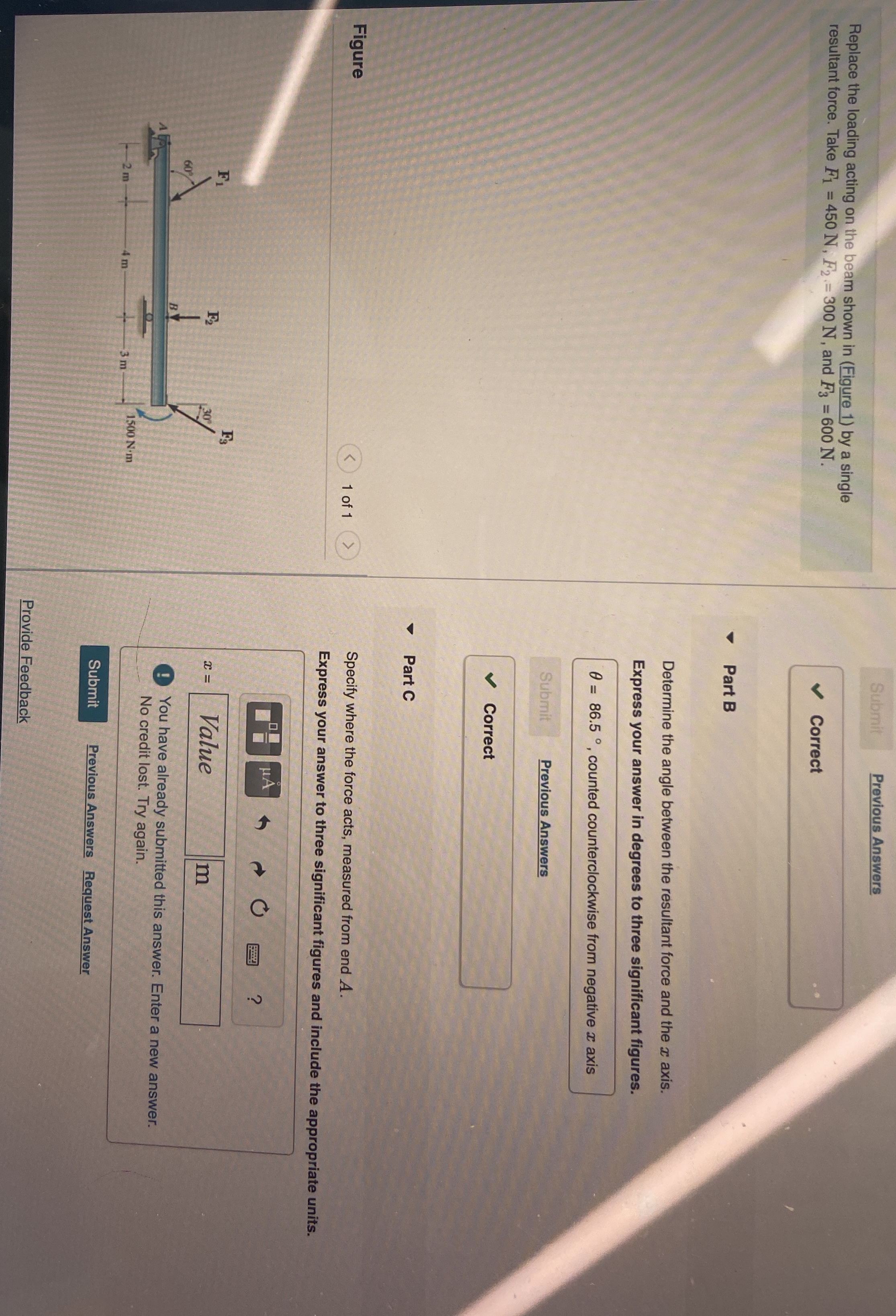

Question: Replace the loading acting on the beam shown in ( Figure 1 ) by a single resultant force. Take F 1 = 4 5 0

Replace the loading acting on the beam shown in (Figure 1) by a single resultant force. Take F1=450N,F2=300N, and F3=600N.
Submit
Previous Answers
Correct
Part B
Determine the angle between the resultant force and the x axis.
Express your answer in degrees to three significant figures.
Previous Answers
Correct
Part C
Specify where the force acts, measured from end A.
Express your answer to three significant figures and include the appropriate units.
Figure
1 of 1
)>(
You have already submitted this answer. Enter a new answer. No credit lost. Try again.
Previous Answers
Request Answer
Provide Feedback
Replace the loading acting on the beam shown in (

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
