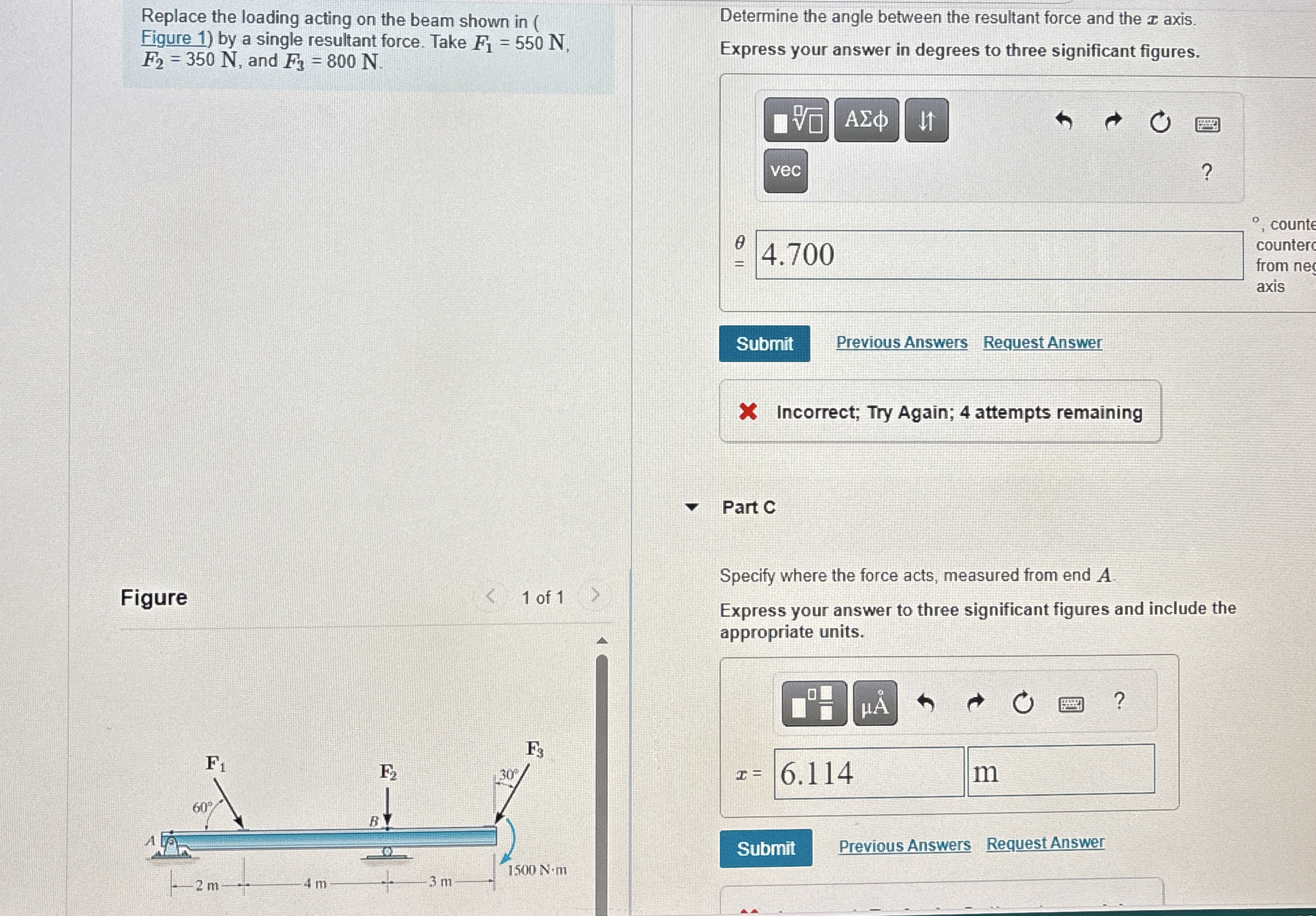

Question: Replace the loading acting on the beam shown in ( Figure 1 ) by a single resultant force. Take F 1 = 5 5 0

Replace the loading acting on the beam shown in ( Figure 1) by a single resultant force. Take F1=550N,F2=350N, and F3=800N.
Figure
1 of 1
Determine the angle between the resultant force and the x axis.
Express your answer in degrees to three significant figures.
=?
?
Previous Answers
Request Answer
q, counte counter from nes axis
\times Incorrect; Try Again; 4 attempts remaining
Part C
Specify where the force acts, measured from end A.
Express your answer to three significant figures and include the appropriate units.
x=
Previous Answers
Request Answer
Replace the loading acting on the beam shown in (

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
