Question: Replace the loading by an equivalent resultant force and couple moment acting at point ( O ) ( Figure 1 ) . Assume

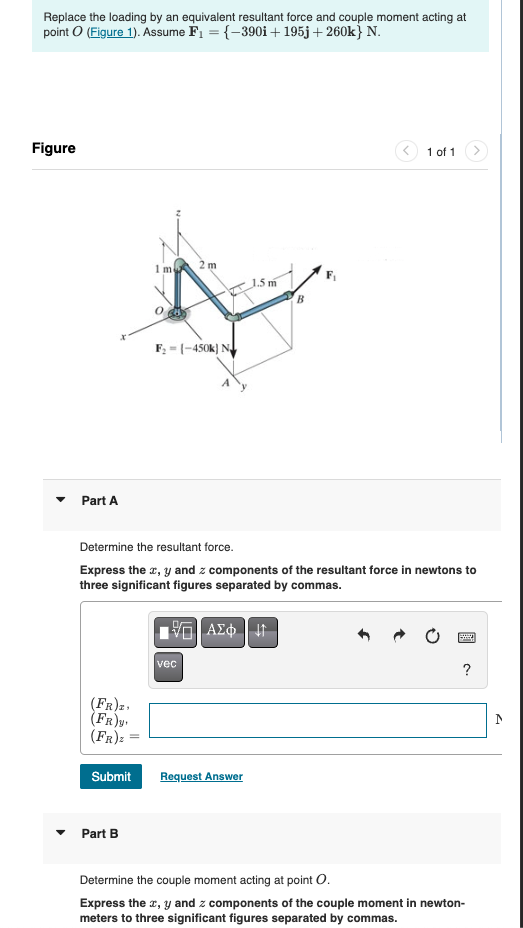

Replace the loading by an equivalent resultant force and couple moment acting at point \( O \)(Figure 1). Assume \(\mathbf{F}_{1}=\{-390\mathbf{i}+195\mathbf{j}+260\mathbf{k}\}\mathrm{N}\).
Figure
Part A
Determine the resultant force.
Express the \( x, y \) and \( z \) components of the resultant force in newtons to three significant figures separated by commas.
Part B
Determine the couple moment acting at point \( O \).
Express the \( x, y \) and \( z \) components of the couple moment in newtonmeters to three significant figures separated by commas.
Replace the loading by an equivalent resultant

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
