Question: Replace the loading by an equivalent single resultant force ( Figure 1 ) . Assume F 1 = 1 8 0 N and F 2

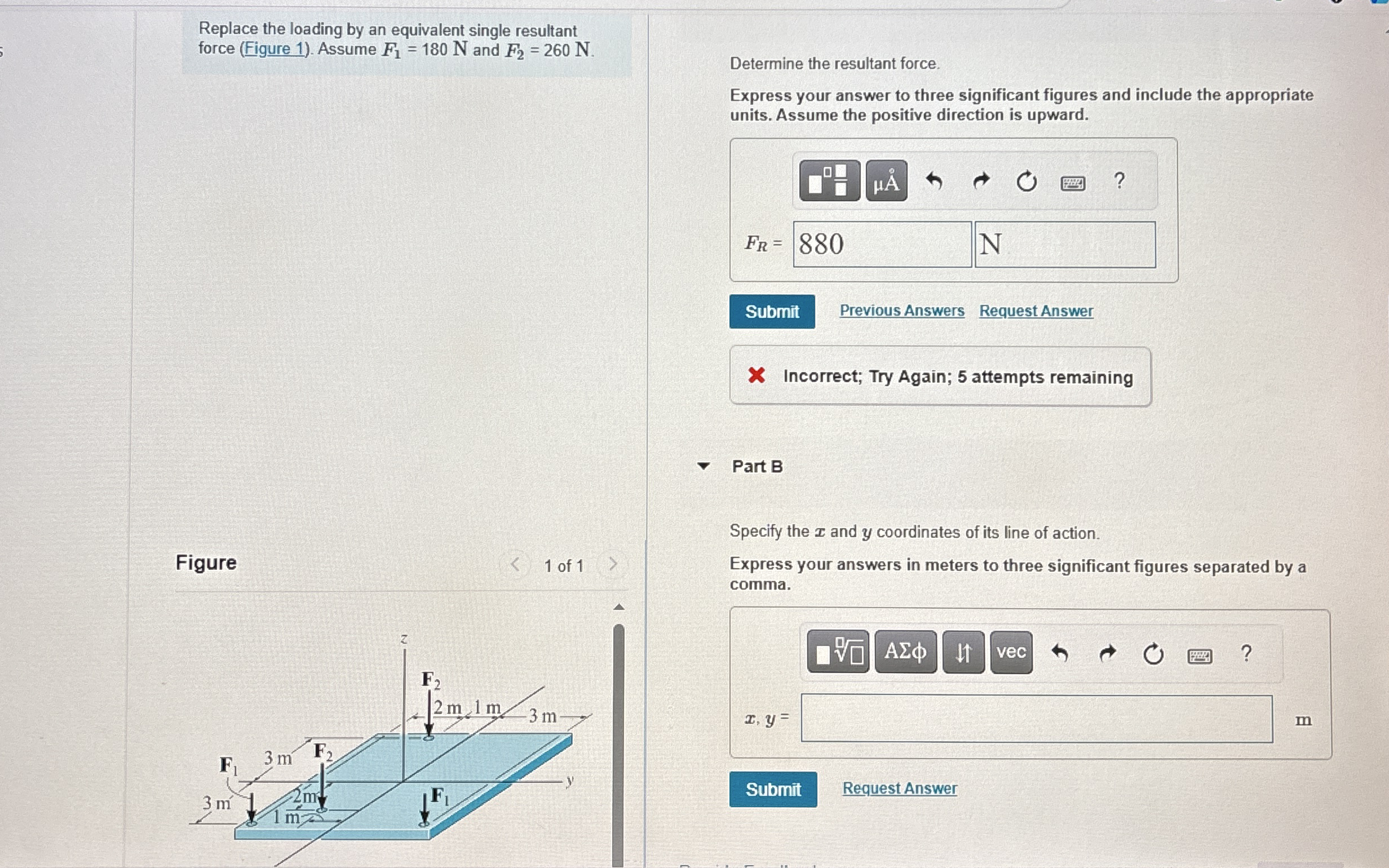

Replace the loading by an equivalent single resultant force (Figure 1). Assume F1=180N and F2=260N.
Determine the resultant force.
Express your answer to three significant figures and include the appropriate units. Assume the positive direction is upward.
FR=
Previous Answers
Request Answer
Incorrect; Try Again; 5 attempts remaining
Part B
Specify the x and y coordinates of its line of action.
Express your answers in meters to three significant figures separated by a comma.
x,y= m
Figure
1 of 1
Request Answer
Replace the loading by an equivalent single

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
