Question: Replace the loading shown by an equivalent single resultant force and specify the x and y coordinates of its line of action. Assume F 1

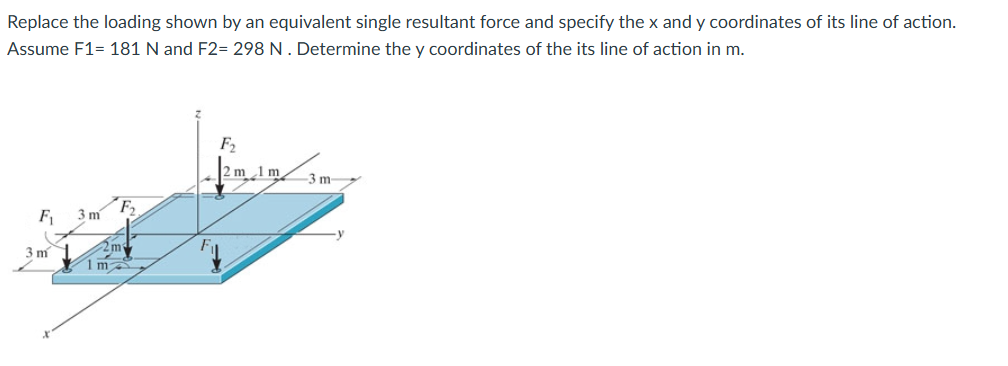

Replace the loading shown by an equivalent single resultant force and specify the x and y coordinates of its line of action.
Assume F1=181 N and F2=298 N . Determine the y coordinates of the its line of action in m .
Replace the loading shown by an equivalent single

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Replace the loading by an equivalent single resultant force and specify the x and y coordinates of its line of action. 100 N 3 m 3 m 200 NEW YE | 200 N | 2 mlm3m - - ,100 N

Q:

Replace the loading by an equivalent single resultant force and specify the x and y coordinates of its line of action. 3 m 100 N 500 N 400 N -4 m- 4 m

Q:

H5. Fundamental Problem 4.35 PartA Replace the loading shown by an equivalent single resitant farce and specty the z and y enordinates of its ine of action Assume Fi - 130 N. F 400 N and Fa -520 N...

Q:

9 REDUCTION OF A SIMPLE DISTRIBUTED LOADING 189 4-141. The column is used to support the floor which exerts a force of 3000 lb on the top of the column. The effect of soil pressure along its side is...

Q:

Replace the loading by an equivalent resultant force and couple moment acting at point (Figure 1). Assume F = 400 N, F = 800 N, and Mc = 85 N. m. Part A Figure 0.3 m F 0.5 m 0.4 m Mc Determine the...

Q:

The shown frame is loaded as shown. You are required to: i- Replace the loading shown on the frame by a force and moment at A. ii- Hence replace the system of forces by a single resultant force....

Q:

On the frame structure shown below; a) Replace the force system by an equivalent resultant force and couple moment acting at point A. b) Replace the force system by a single resultant force, and...

Q:

Replace the loadings shown by a single resultant force, and specify where its line of action intersects member ion intersects A B measured from point A .

Q:

* 4 - 1 2 0 . Replace the loading on the frame by a single resultant force. Specify where its line of action intersects member A B , measured from A . 4 - 1 2 1 . Replace the loading on the frame by...

Q:

Replace the loading acting on the frame by an equivalent resultant force and specify where the resultants line of action intersects, member A B ( Eloure 1 ) Suppose that F 1 = 1 6 0 l b , F 2 = 6 0 l...
