Question: Replace the loading shown on the beam by a single force and moment about B . Hence replace the system by a Determine single its

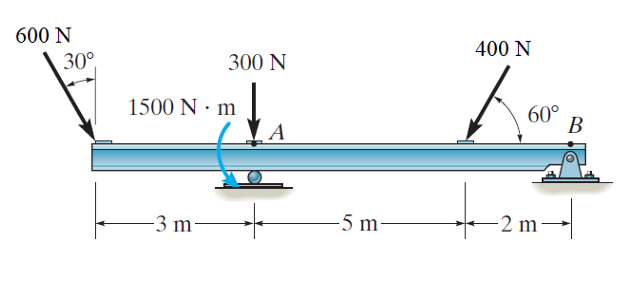

Replace the loading shown on the beam by a single force and moment about B. Hence replace the system by a Determine single its force. location along the beam from point B.
Replace the loading shown on the beam by a single

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
