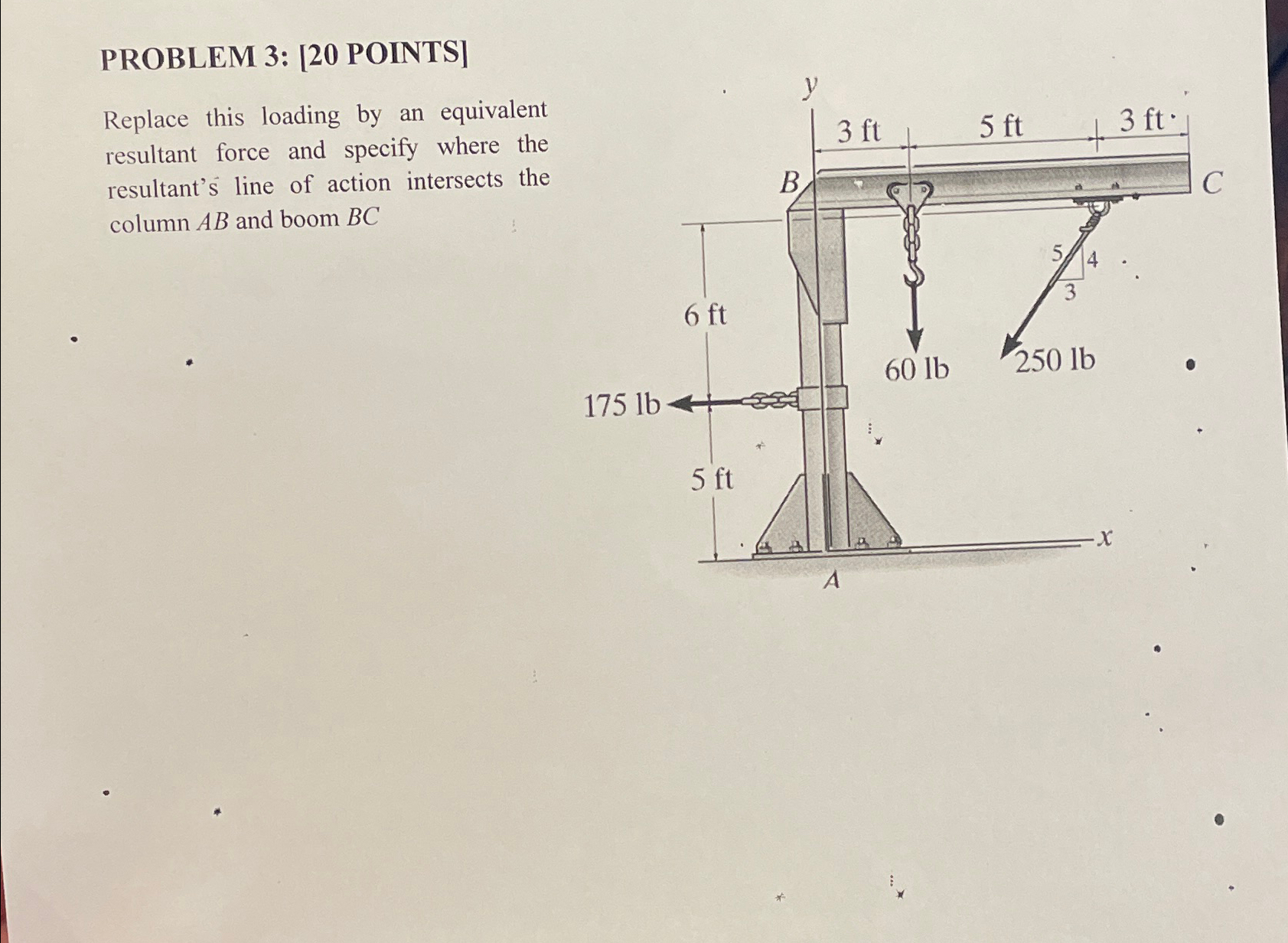

Question: Replace this loading by an equivalent resultant force and specify where the resultant's line of action intersects the column A B and boom B C

Replace this loading by an equivalent resultant force and specify where the resultant's line of action intersects the column AB and boom BC
Replace this loading by an equivalent resultant

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
