REQUIRED

Based on the information below, we would like you to build a project schedule and resource chart.

You can use a PERT/Network Diagram approach, create a Gantt chart in Excel, or use some other piece of planning/scheduling software (for example, MS Project, Primavera, or another of your choice).

This schedule must contain the following information:

An appropriate WBS Different activity types Logic-driven start and finish dates Highlight the Critical Path Either a Resource Histogram or Resource Spreadsheet

Project Goal:

Your current bathroom is unsuitable due to a lack of insulation. This makes it very cold. You want to ensure that the bathroom is warm, and also re-decorated after any building work is completed

Project Objectives:

To strap and insulate the walls To decorate the bathroom

Project Dates:

Start Date: 4 June 2021

End Date: ?

Calendar/Working hours:

Working Hours are Monday - Friday, 0900 - 1700

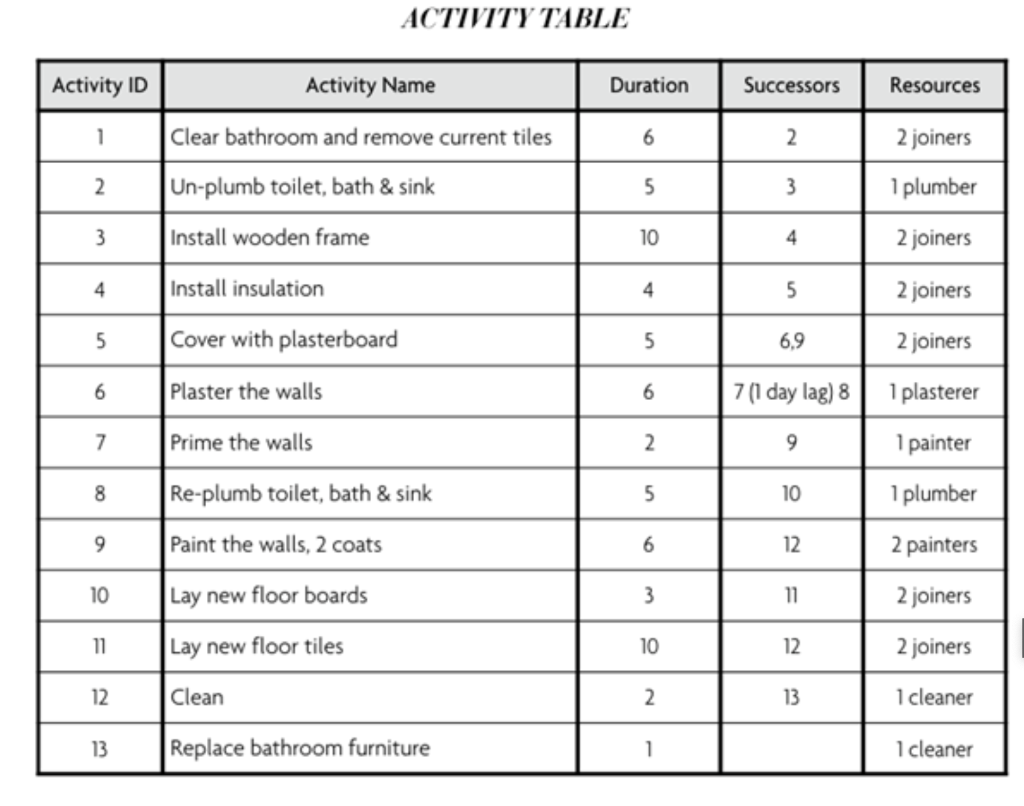

Following is the Activity Table

Activity ID 1 2 3 4 5 6 7 8 9 10 11 12 13 ACTIVITY TABLE Activity Name Clear bathroom and remove current tiles Un-plumb toilet, bath & sink Install wooden frame Install insulation Cover with plasterboard Plaster the walls Prime the walls Re-plumb toilet, bath & sink Paint the walls, 2 coats Lay new floor boards Lay new floor tiles Clean Replace bathroom furniture Duration 6 5 10 4 5 6 2 5 6 3 10 2 1 Successors 2 3 4 5 6,9 7 (1 day lag) 8 9 10 12 11 12 13 Resources 2 joiners 1 plumber 2 joiners 2 joiners 2 joiners 1 plasterer 1 painter 1 plumber 2 painters 2 joiners 2 joiners 1 cleaner 1 cleaner
