Question: ! Required information Collars A and B are connected by a 5 2 5 - mm - long wire and can slide freely on frictionless

!
Required information

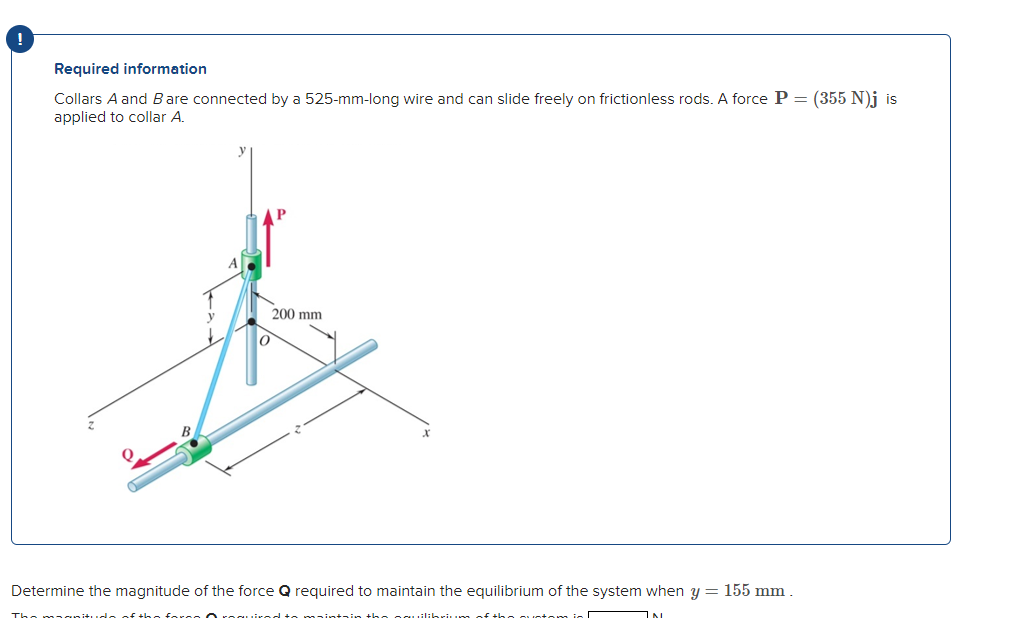

Collars A and B are connected by a 525-mm-long wire and can slide freely on frictionless rods. A force P=(355N)j is applied to collar A.
Determine the magnitude of the force Q required to maintain the equilibrium of the system when y=155mm.
! Required information Collars A and B are

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
