Question: ! Required information Consider the beam and loading shown. Use E = 2 2 0 GPa. Determine the slope at end A . The slope

!
Required information

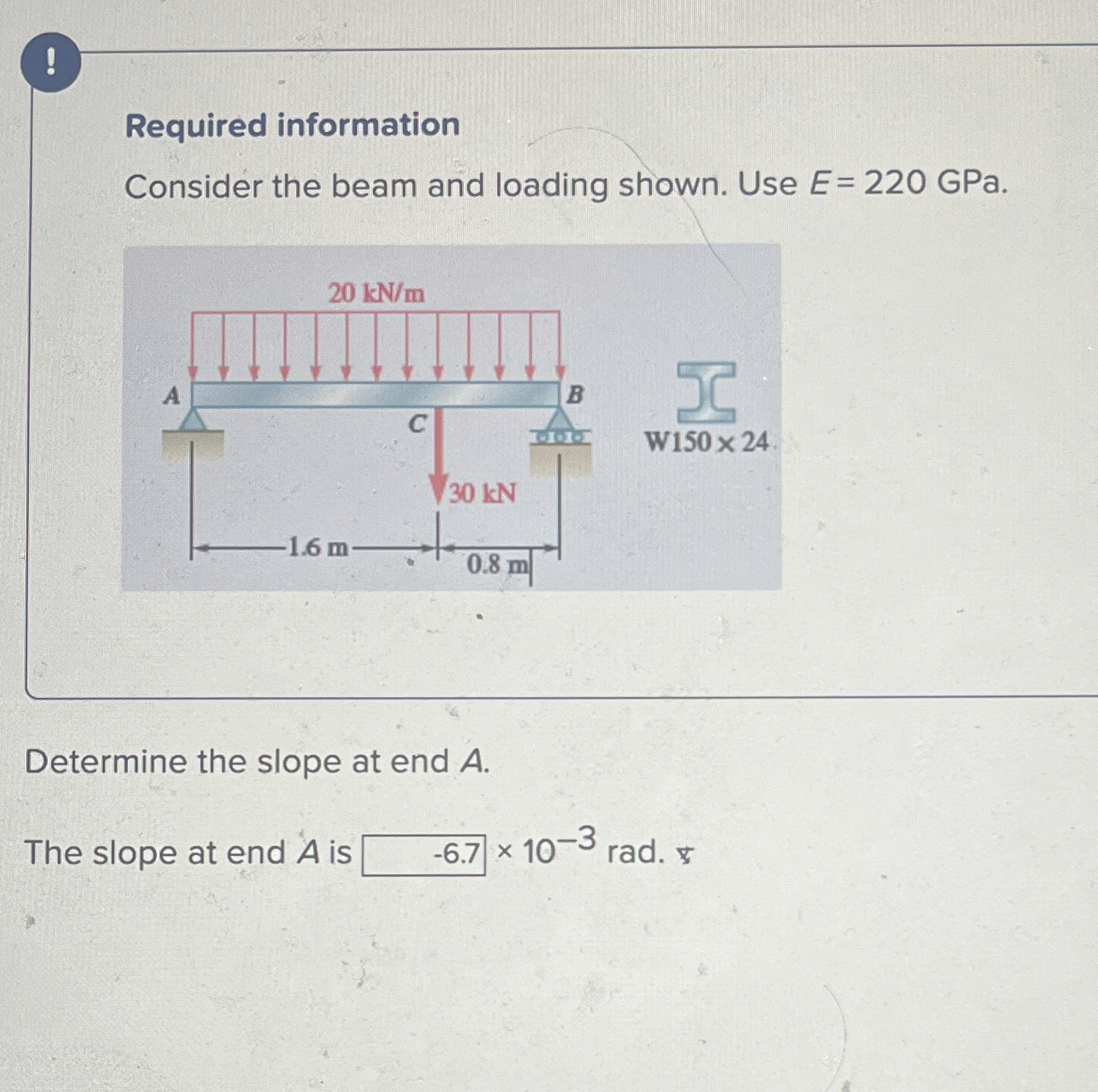

Consider the beam and loading shown. Use E=220 GPa.
Determine the slope at end A.
The slope at end A is 10-3rad.
! Required information Consider the beam and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
