USING DOUBLE INTEGRATION BRACKET METHOD.

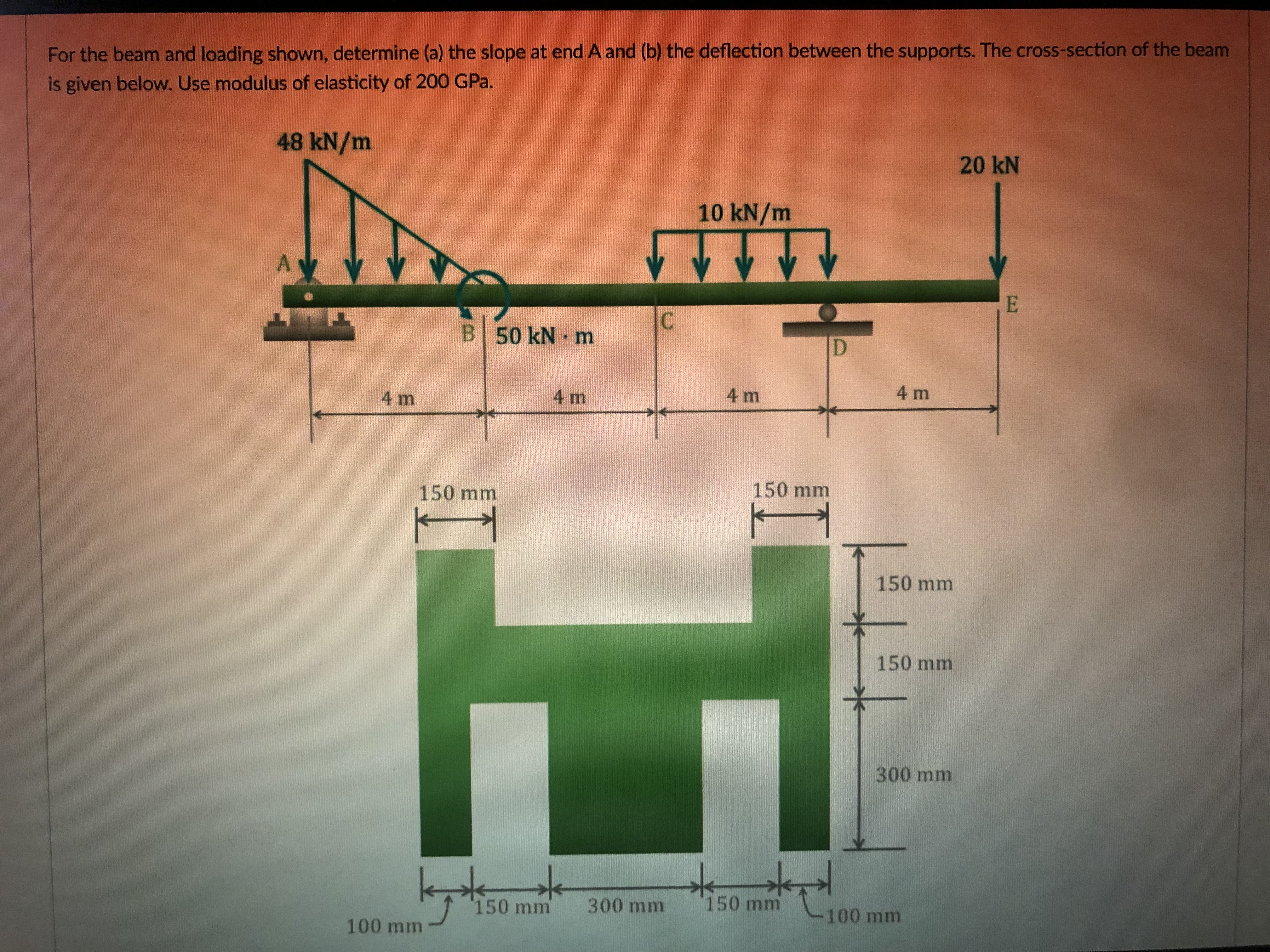

For the beam and loading shown, determine (a) the slope at end A and (b) the deflection between the supports. The cross-section of the beam is given below. Use modulus of elasticity of 200 GPa.

For the beam and loading shown, determine (a) the slope at end A and (b) the deflection between the supports. The cross-section of the beam is given below. Use modulus of elasticity of 200 Ga. 48 kN/m 20 kN 10 kN/m E B C 50 kN . m 4 m 4 m 4 m 4 m 150 mm 150 mm 150 mm 150 mm 300 mm 150 mm 300 mm 150 mm 100 mm 100 mm
