Question: ( ! ) Required information Consider the given beam and loading, where P = 2 kips. Take the section modulus as 1 . 6 7

(!)
Required information

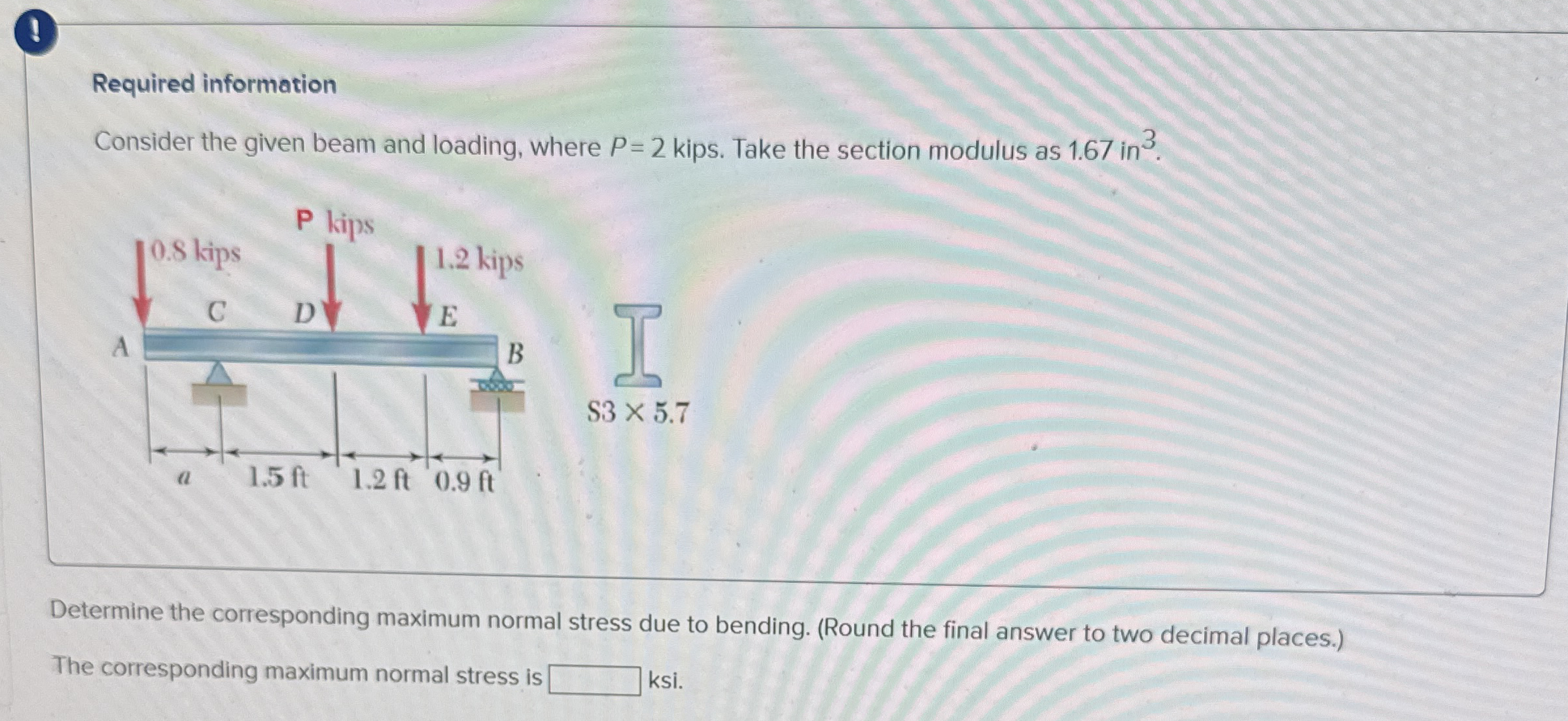

Consider the given beam and loading, where P=2kips. Take the section modulus as 1.67in3.
Determine the corresponding maximum normal stress due to bending. (Round the final answer to two decimal places.)
The corresponding maximum normal stress is ksi.
a is 1.585 ft!!!!
( ! ) Required information Consider the given

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
