Question: Required information Consider the given figure with P = 1 k N , Q = 4 k N , R = 4 k N ,

Required information
Consider the given figure with P=1kN,Q=4kN,R=4kN, and S=4kN.

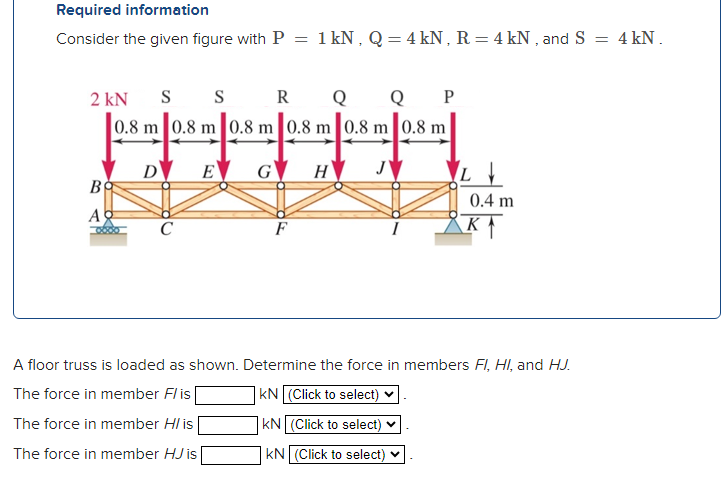

A floor truss is loaded as shown. Determine the force in members F,HI, and HJ.
The force in member F? is kN (Click to select)vv.
The force in member H? is
The force in member HJ is
Required information Consider the given figure

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
