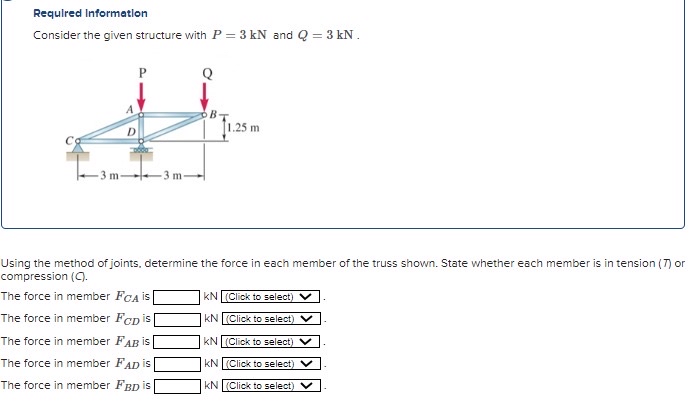

Required Information

Consider the given structure with $P=3kN$ and $Q=3kN.$

Using the method of joints, determine the force in each member of the truss shown. State whether each member is in tension $(T)$ or compression $(C.$

The force in member $F_{CA}$ is

kN $($Click to select$)$

The force in member $F_{CD}$ is

kN $($Click to select$)$

The force in member $F_{AB}$ is

kN $($Click to select$)$

The force in member $F_{AD}$ is

kN $($Click to select$)$

The force in member $F_{BD}$ is kN
