Question: Required information Consider the given structure with P = 9 4 9 l b . Ising the method of joints, determine the force in each

Required information

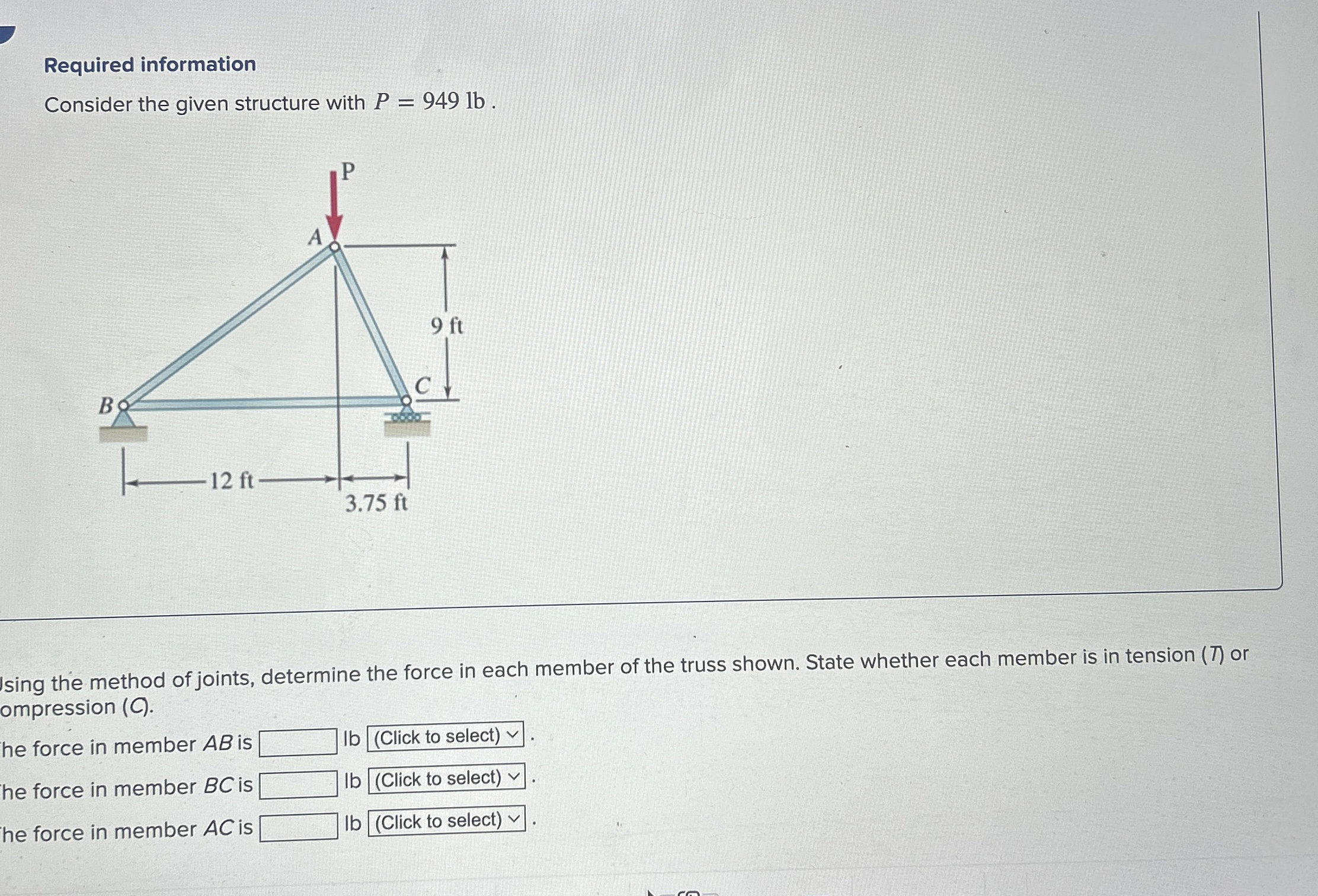

Consider the given structure with P=949lb.
Ising the method of joints, determine the force in each member of the truss shown. State whether each member is in tension (T) or ompression (C).
he force in member AB is q, Ib (Click to select)vv.
he force in member BC is Ib (Click to select)v.
he force in member AC is Ib (Click to select)v.
Required information Consider the given structure

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
