Question: Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. A double-pitch roof

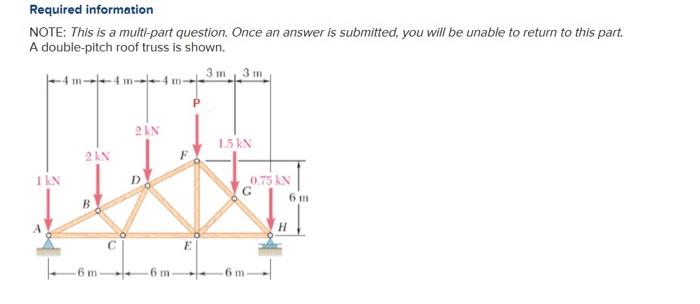

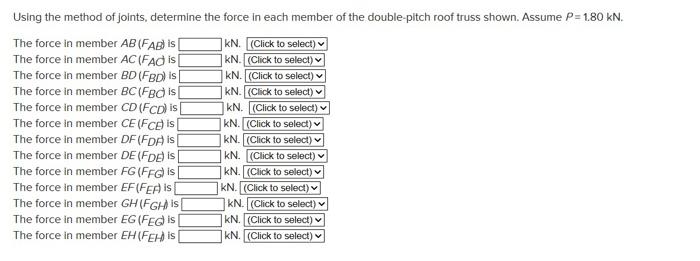

Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. A double-pitch roof truss is shown. Using the method of joints, determine the force in each member of the double-pltch roof truss shown. Assume P=1.80kN. The force in member AB(FAB) is kN. The force in member AC ( FAC is kN. The force in member BD(FBD) is kN. The force in member BC(FBC) is kN. The force in member CD(FCD) is kN. The force in member CE(FCE) is kN. The force in member DF(FDA is kN. The force in member DE(FDE) is kN. The force in member FG(FFG) is kN. The force in member EF(FEA) is kN. The force in member GH(FGH) is kN. The force in member EG(FEG) is kN. The force in member EH(FEH) is kN. Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. A double-pitch roof truss is shown. Using the method of joints, determine the force in each member of the double-pltch roof truss shown. Assume P=1.80kN. The force in member AB(FAB) is kN. The force in member AC ( FAC is kN. The force in member BD(FBD) is kN. The force in member BC(FBC) is kN. The force in member CD(FCD) is kN. The force in member CE(FCE) is kN. The force in member DF(FDA is kN. The force in member DE(FDE) is kN. The force in member FG(FFG) is kN. The force in member EF(FEA) is kN. The force in member GH(FGH) is kN. The force in member EG(FEG) is kN. The force in member EH(FEH) is kN

Step by Step Solution
