Required information

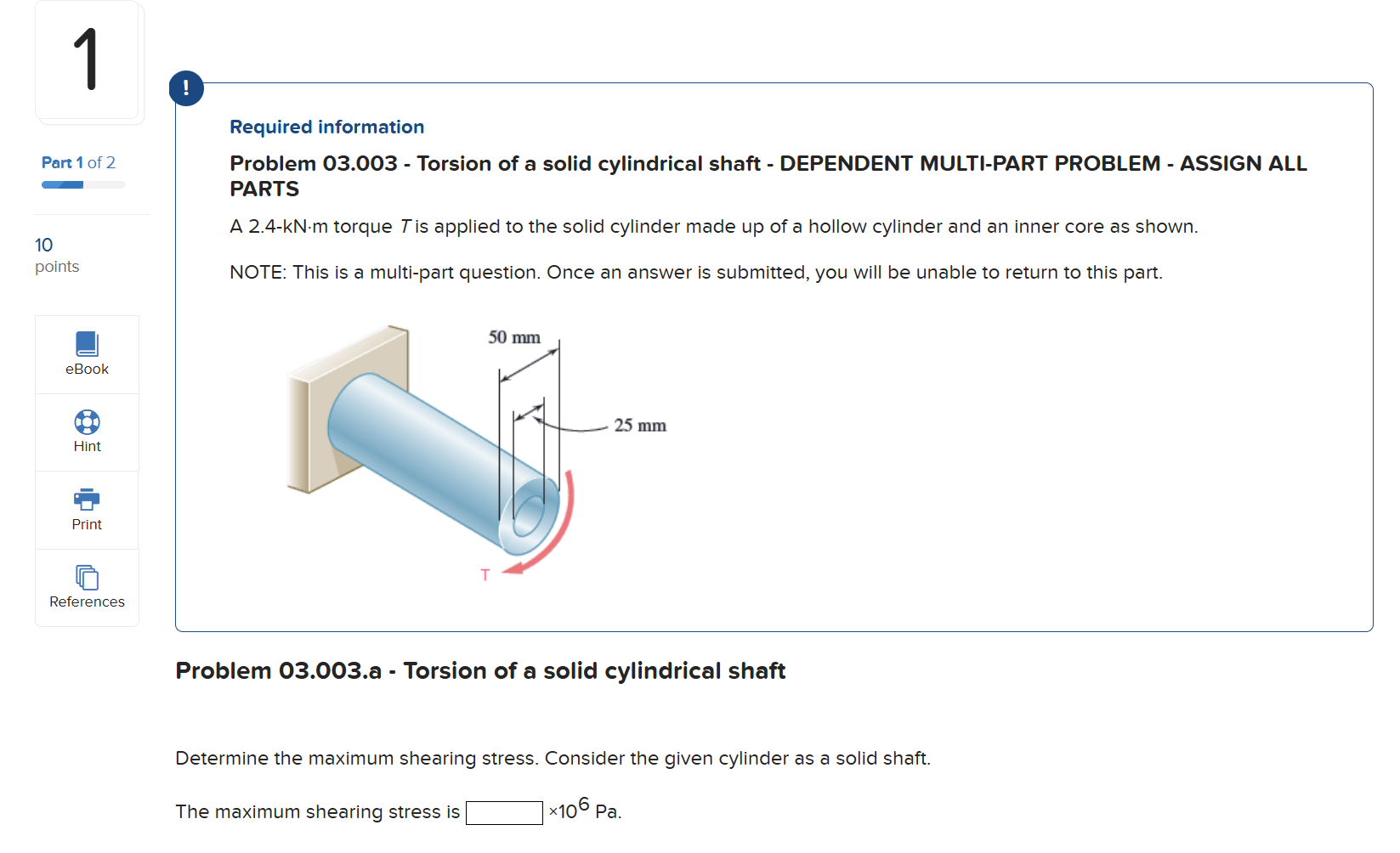

Problem $03\mathrm{.}003-$ Torsion of a solid cylindrical shaft $-$ DEPENDENT MULTI$-$PART PROBLEM $-$ ASSIGN ALL

PARTS

A $2\mathrm{.}4-kN*m$ torque $T$ is applied to the solid cylinder made up of a hollow cylinder and an inner core as shown.

NOTE: This is a multi$-$part question. Once an answer is submitted, you will be unable to return to this part.

Problem $03\mathrm{.}003.$a $-$ Torsion of a solid cylindrical shaft

Determine the maximum shearing stress. Consider the given cylinder as a solid shaft.

The maximum shearing stress is

${10}^{6}Pa.$
