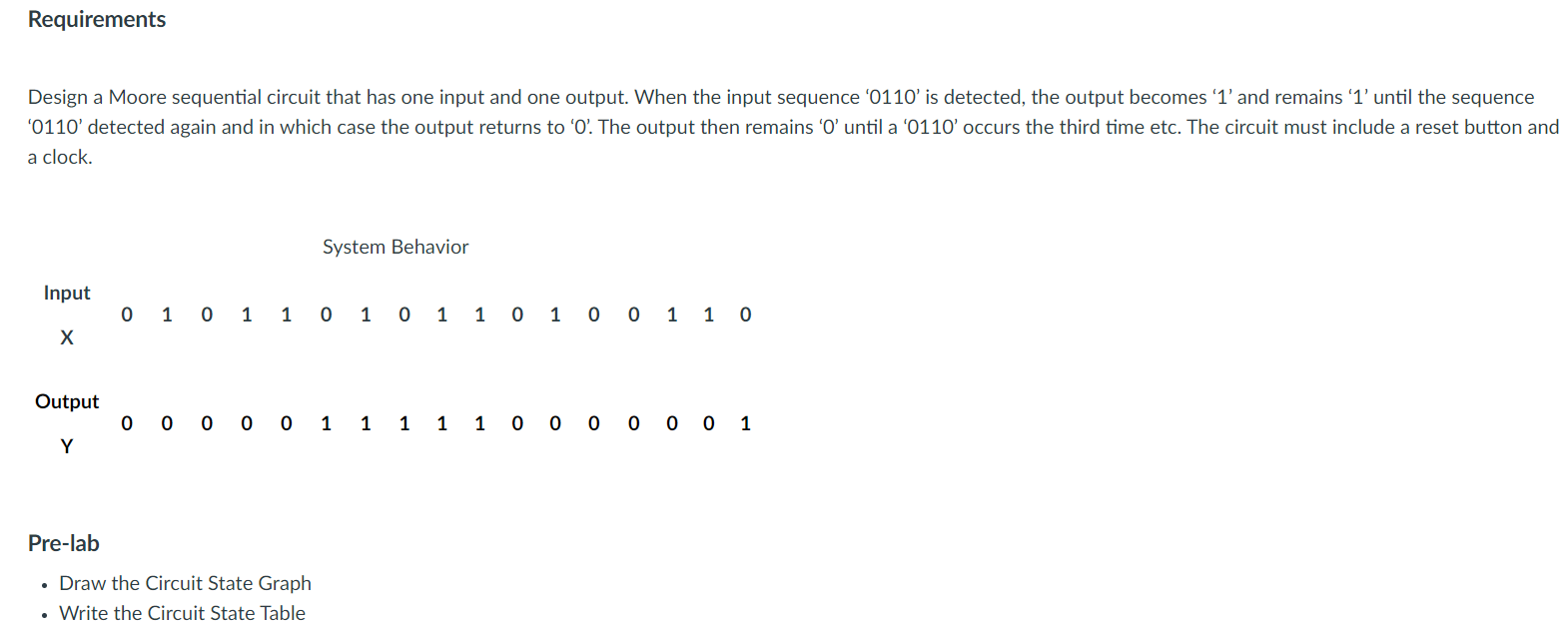

Requirements

Design a Moore sequential circuit that has one input and one output. When the input sequence $\text{'}0110\text{'}$ is detected, the output becomes $\text{'}1\text{'}$ and remains $\text{'}1\text{'}$ until the sequence

$\text{'}0110\text{'}$ detected again and in which case the output returns to $\text{'}0\text{'}.$ The output then remains $\text{'}0\text{'}$ until a $\text{'}0110\text{'}$ occurs the third time etc. The circuit must include a reset button and

a clock.

System Behavior

Pre$-$lab

Draw the Circuit State Graph

Write the Circuit State Table
