Review Exercise $-$ Final

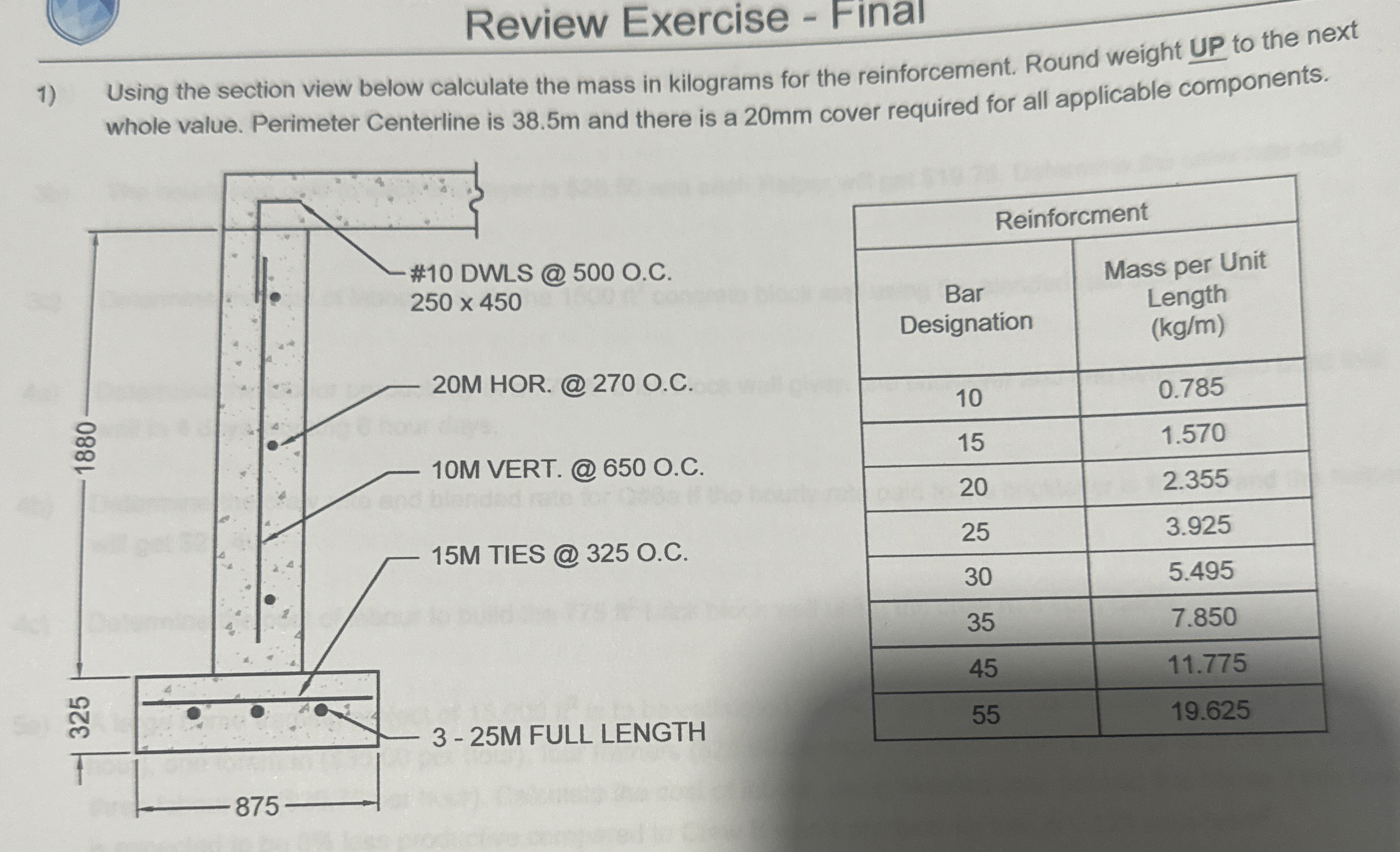

Using the section view below calculate the mass in kilograms for the reinforcement. Round weight UP to the next whole value. Perimeter Centerline is $38\mathrm{.}5$ m and there is a $20$ mm cover required for all applicable components.

$\backslash$table$[[$Reinforcment$],[\backslash$table$[[$Bar$],[$Designation$]],\backslash$table$[[$Mass per Unit$],[$Length$],[($kg$/$m$)]]],[10,0\mathrm{.}785],[15,1\mathrm{.}570],[20,2\mathrm{.}355],[25,3\mathrm{.}925],[30,5\mathrm{.}495],[35,7\mathrm{.}850],[45,11\mathrm{.}775],[55,19\mathrm{.}625]]$
