Question: Rod A D supports a vertical load P . The collars at B and C can slide freely on the rods shown. The wire attached

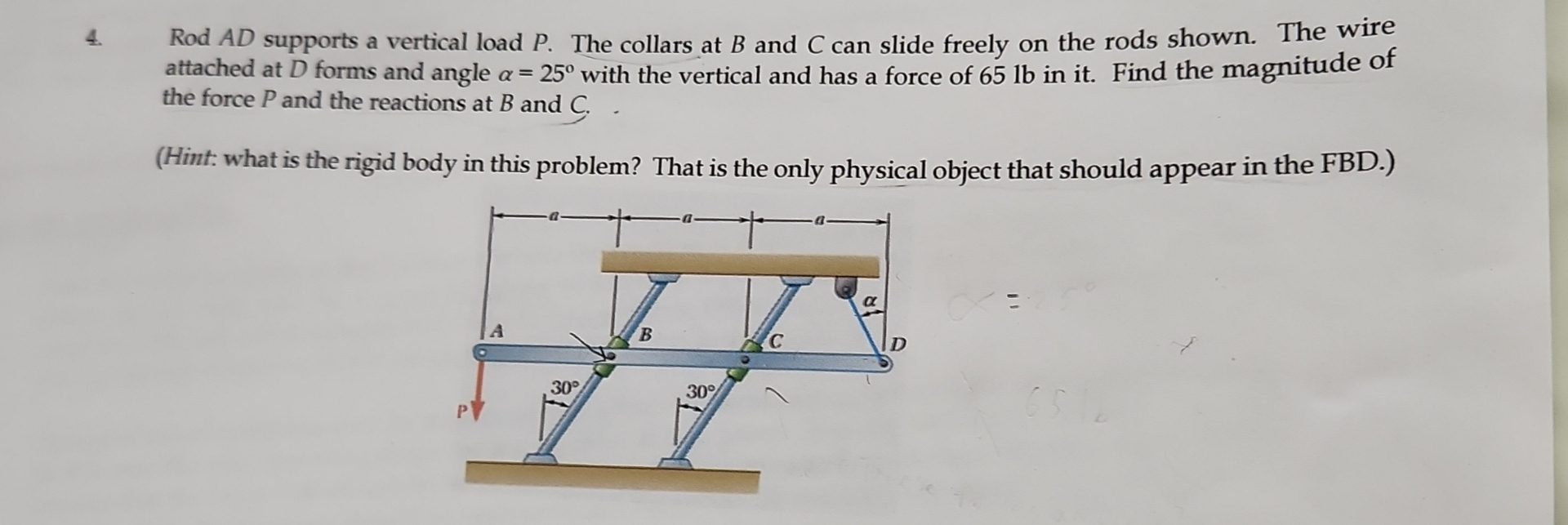

Rod AD supports a vertical load P. The collars at B and C can slide freely on the rods shown. The wire attached at D forms and angle =25 with the vertical and has a force of 65 lb in it. Find the magnitude of the force P and the reactions at B and C.
Rod A D supports a vertical load P . The collars

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
