Question: s = tf ( ' s ) ; tau 1 = 0 . 4 ; K 1 = 1 / tau 1 ; tau 2

s = tf('s);
tau1=0.4;
K1=1/tau1;
tau2=0.3;
K2=1/tau2;
P=(K1*K2)/((tau1*s+1)*(tau2*s+1))
Kp=50
Ki=100
Kd=0
C=pid(Kp.Ki.Kd)
T=feedback(C*P,1)
t=0:0.01:5;
step(T,t)
stepinfo(T)
o(T)

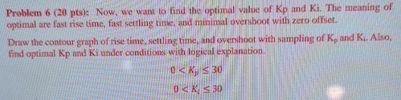

Please find the optimal Kp and Ki values within the range. I need to find the optimal Kp, Ki values for the contour graph.
s = tf ( ' s ) ; tau 1 = 0 . 4 ; K 1 = 1 / tau 1
