Question: Sample problems for test 1 Problem 1 A perfectly rigid beam is suspended on two rods of length ( / ) and loaded

Sample problems for test 1
Problem 1

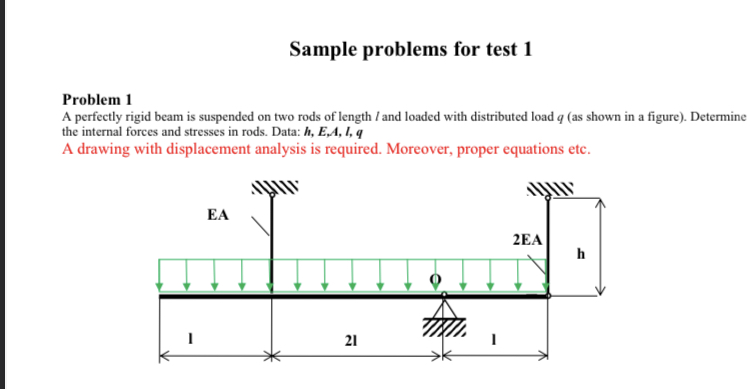

A perfectly rigid beam is suspended on two rods of length \(/\) and loaded with distributed load \( q \)(as shown in a figure). Determine the internal forces and stresses in rods. Data: \(\boldsymbol{h},\boldsymbol{E},\boldsymbol{A},\boldsymbol{l},\boldsymbol{q}\)
A drawing with displacement analysis is required. Moreover, proper equations etc.
Sample problems for test 1 Problem 1 A perfectly

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
