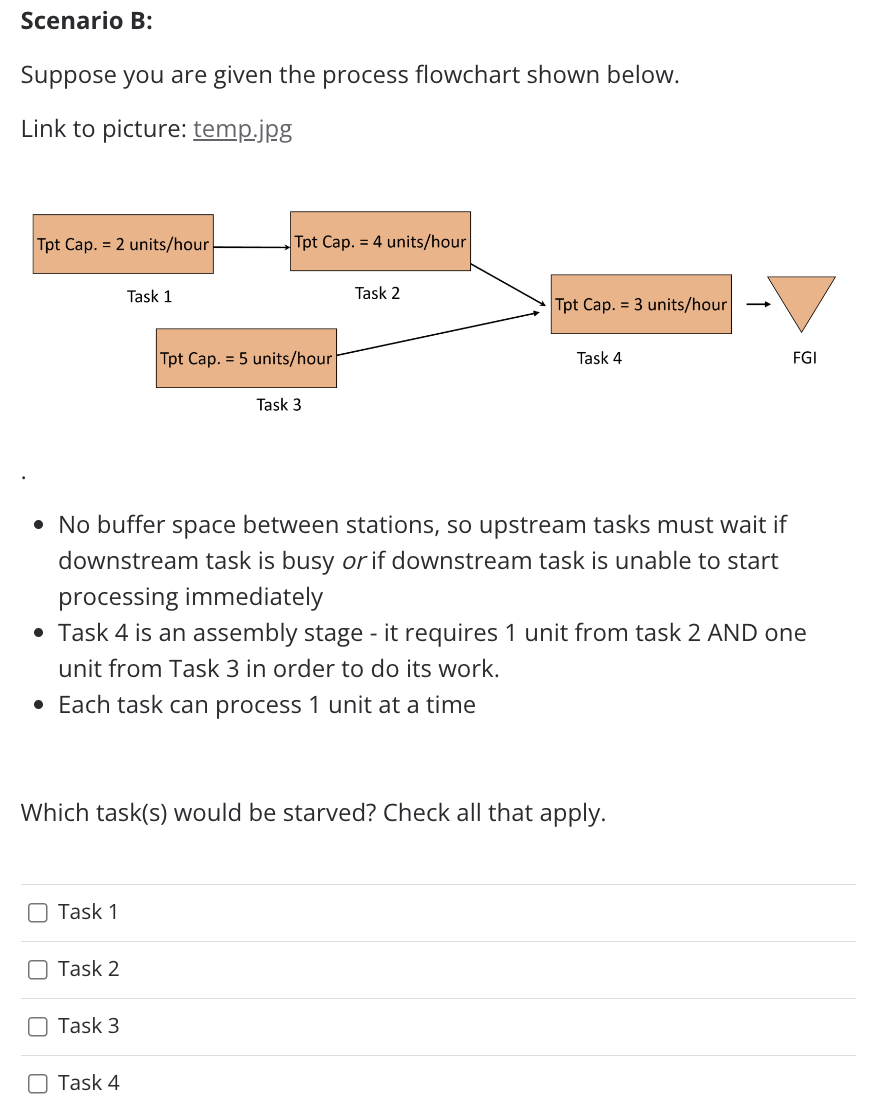

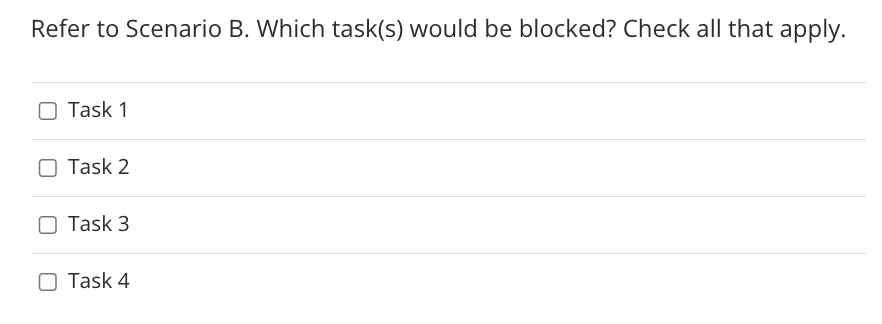

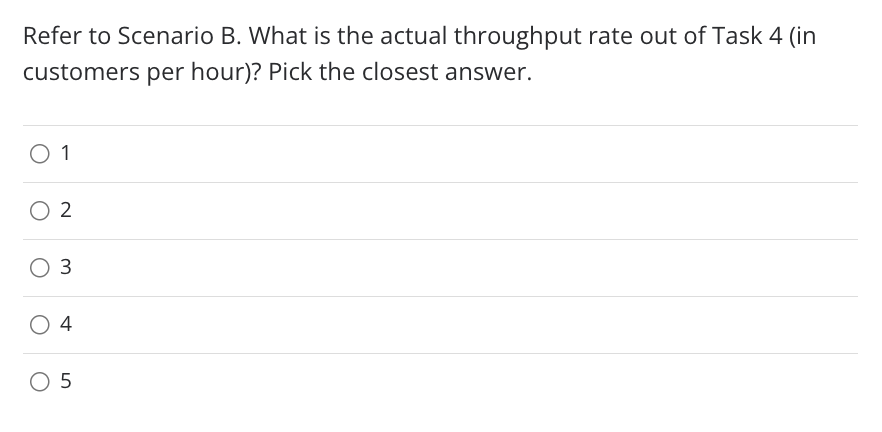

Scenario B: Suppose you are given the process flowchart shown below. Link to picture: temp.jpg - No buffer space between stations, so upstream tasks must wait if downstream task is busy or if downstream task is unable to start processing immediately - Task 4 is an assembly stage - it requires 1 unit from task 2 AND one unit from Task 3 in order to do its work. - Each task can process 1 unit at a time Which task(s) would be starved? Check all that apply. Task 1 Task 2 Task 3 Task 4 Refer to Scenario B. Which task(s) would be blocked? Check all that apply. Task 1 Task 2 Task 3 Task 4 Refer to Scenario B. What is the actual throughput rate out of Task 4 (in customers per hour)? Pick the closest answer. 1 2 3 4 5
