Question: Section 1 Exercise 1 . ( 1 5 points ) The bridge rectifier shown in the next Figure uses silicon diodes, the voltage Source before

Section 1
Exercise 1.(15 points)

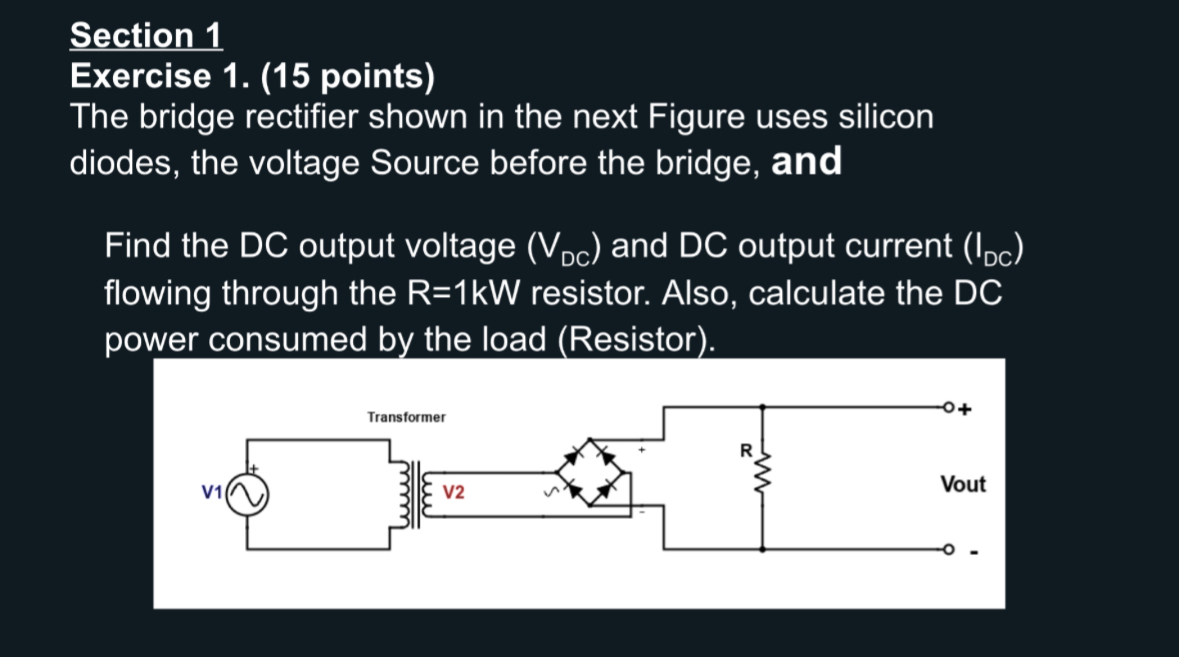

The bridge rectifier shown in the next Figure uses silicon diodes, the voltage Source before the bridge, and
Find the DC output voltage (VDC) and DC output current (IDC) flowing through the R=1kW resistor. Also, calculate the DC power consumed by the load (Resistor).
Section 1 Exercise 1 . ( 1 5 points ) The bridge

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
