Question: Section II: Method ofJoints ( Choose this or Section III: Method of Sections ) ( 4 5 pts ) Using the mathematical method of joints,

Section II: Method ofJoints

(

Choose this or Section III: Method of Sections

)

(45

pts

)

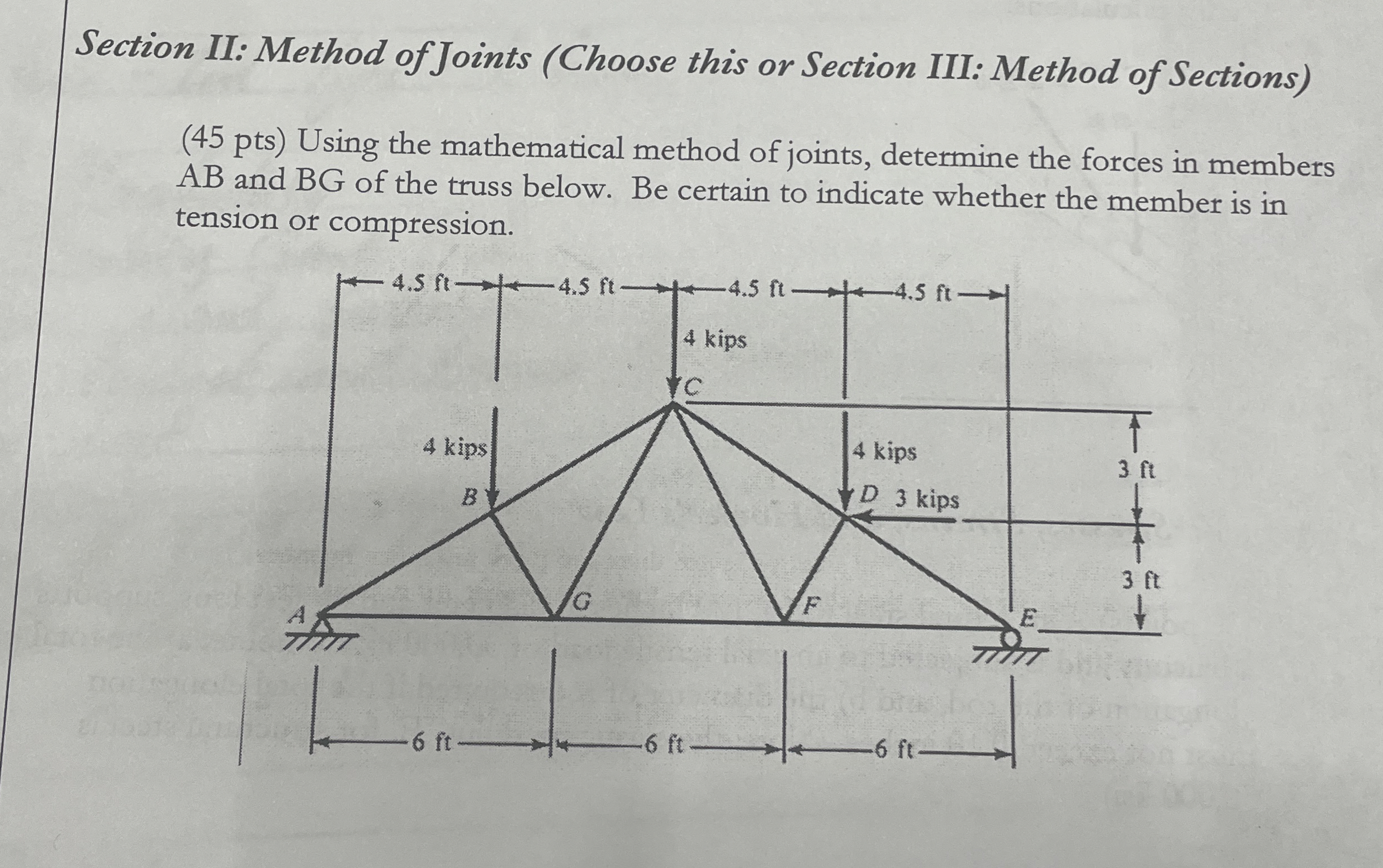

Using the mathematical method of joints, determine the forces in members AB and BG of the truss below. Be certain to indicate whether the member is in tension or compression.

Section II: Method ofJoints ( Choose this or

Step by Step Solution

There are 3 Steps involved in it
