Question: SECTION II. Relationship modeling Problem (3} Draw an entity relationship diagram [ERD]: for the following situations. Wouid the reiationships be identifying or nonidentifying? Why? a

SECTION II. Relationship modeling Problem (3} Draw an entity relationship diagram

[ERD]: for the following situations. Wouid the reiationships be identifying or nonidentifying?

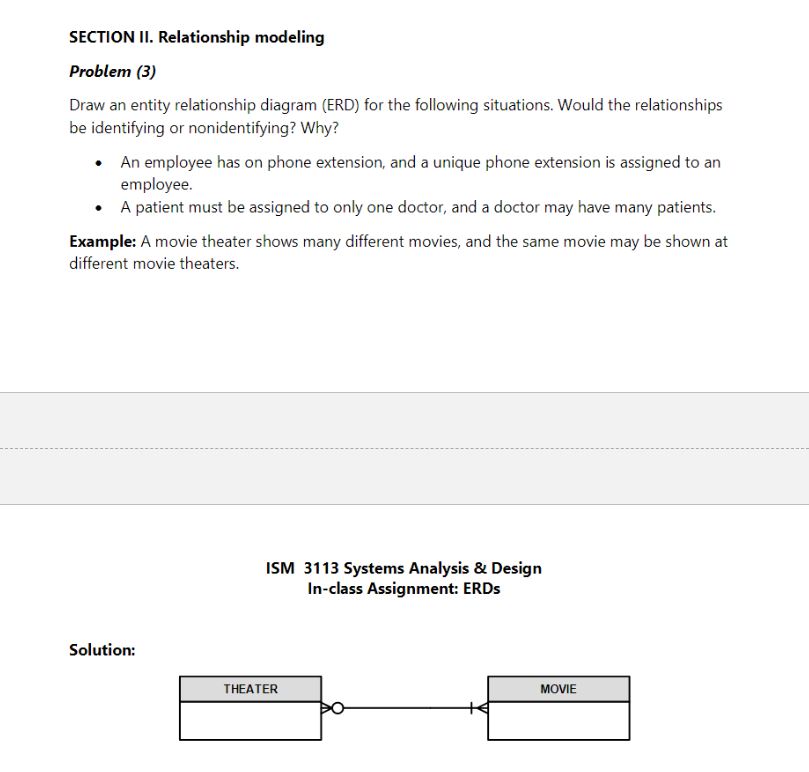

SECTION II. Relationship modeling Problem (3} Draw an entity relationship diagram [ERD]: for the following situations. Wouid the reiationships be identifying or nonidentifying? Why? a An employee has on phone extension, and a unique phone extension is assigned to an employee. a A patient must be assigned to only one doctor, and a doctor may have many patients. Example: A movie theater shows many different movies, and the same movie may be shown at different movie theaters. ISM 3113 Systems Analysis 8: Design Inoclass Assignment: ERDs Solution

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
