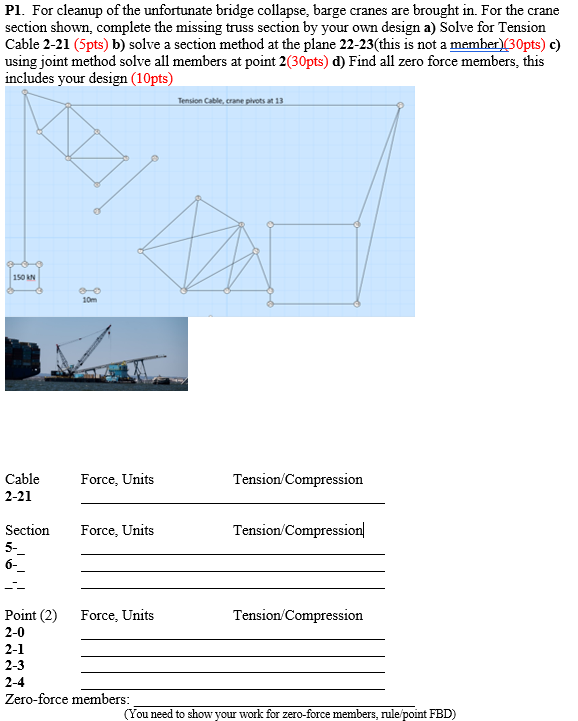

Question: section shown, complete the missing truss section by your own design a ) Solve for Tension Cable 2 - 2 1 ( 5 pts )

section shown, complete the missing truss section by your own design a) Solve for Tension
Cable 2-21(5pts) b) solve a section method at the plane 22-23(this is not a memher)(30pts) c)
using joint method solve all members at point 2(30pts) d) Find all zero force members, this
includes your design (10pts)
Zero-force members:
section shown, complete the missing truss section

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
