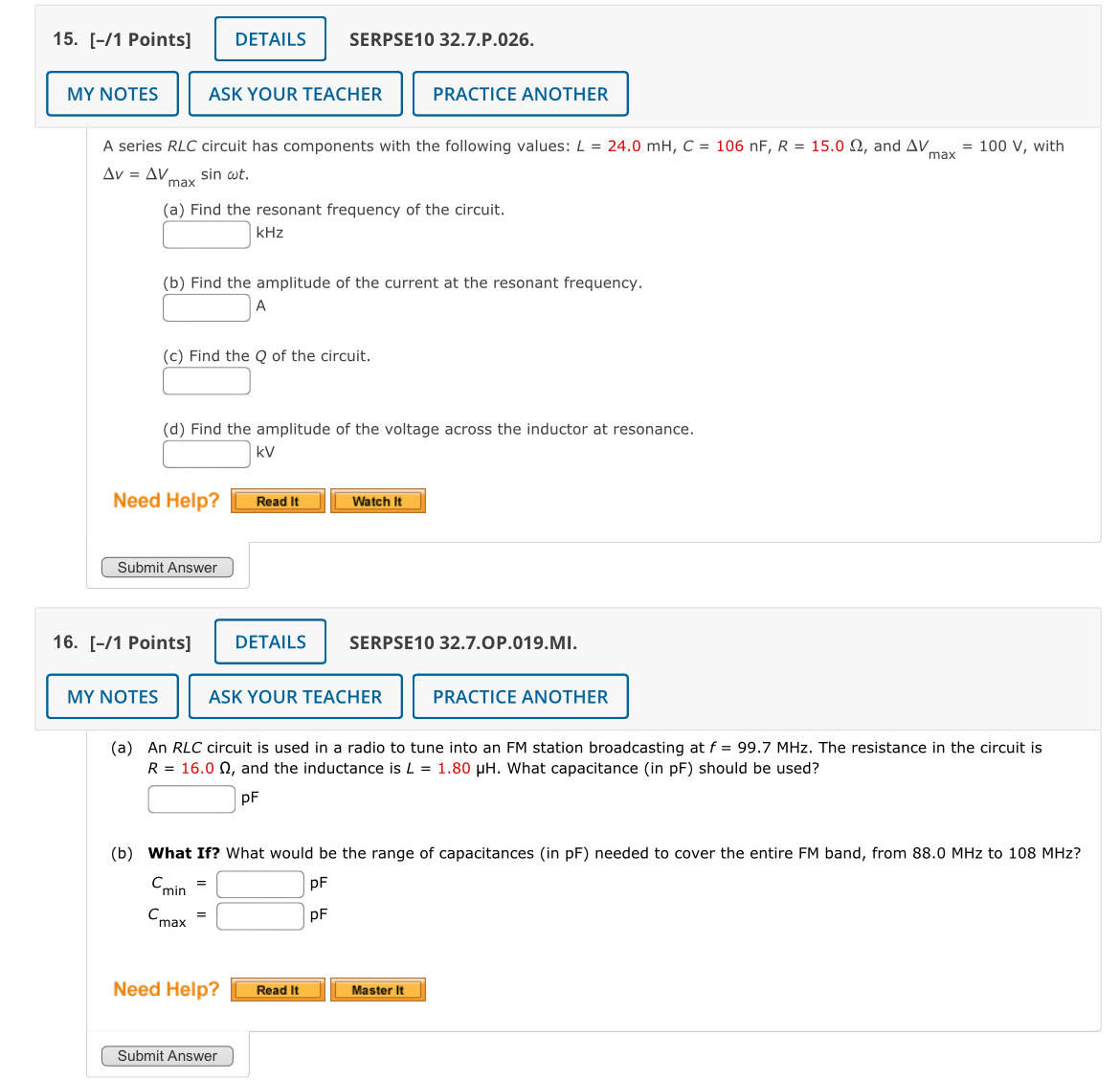

SERPSE10 32.7.P.026. 15. [-/1 Points] DETAILS MY NOTES ASK YOUR TEACHER PRACTICE ANOTHER A series RLC circuit has components with the following values: L = 24.0 mH, C = 106 nF, R = 15.0 2, and AV Av = AV sin wt. max (a) Find the resonant frequency of the circuit. kHz (b) Find the amplitude of the current at the resonant frequency. A (c) Find the Q of the circuit. (d) Find the amplitude of the voltage across the inductor at resonance. KV Need Help? Read It Watch It Submit Answer SERPSE10 32.7.OP.019.MI. 16. [-/1 Points] DETAILS MY NOTES ASK YOUR TEACHER = 100 V, with max PRACTICE ANOTHER (a) An RLC circuit is used in a radio to tune into an FM station broadcasting at f = 99.7 MHz. The resistance in the circuit is R = 16.00, and the inductance is L = 1.80 H. What capacitance (in pF) should be used? PF (b) What If? What would be the range of capacitances (in pF) needed to cover the entire FM band, from 88.0 MHz to 108 MHz? Cmin Cmax = = PF PF Need Help? Read It Master It Submit Answer SERPSE10 32.8.OP.021. 18. [-/1 Points] DETAILS MY NOTES ASK YOUR TEACHER PRACTICE ANOTHER A step-down transformer is used for recharging the batteries of portable electronic devices. The turns ratio N2/N for a particular transformer used in a DVD player is 1:12. When used with 120-V (rms) household service, the transformer draws an rms current of 50.0 mA from the house outlet. (a) Find the rms output voltage (in V) of the transformer. (b) Find the power (in W) delivered to the DVD player. W (c) What If? What would be the current (in mA) drawn from the house outlet if the transformer had an efficiency of 88.0%, but the power delivered to the Blu-ray player remains the same? mA Need Help? Read It Watch It Submit Answer SERPSE10 32.A.OP.023. 20. [-/1 Points] DETAILS MY NOTES ASK YOUR TEACHER PRACTICE ANOTHER A step-up transformer is designed to have an output voltage of 2 200 V (rms) when the primary is connected across a 110-V (rms) source. (a) If the primary winding has exactly 88 turns, how many turns are required on the secondary? turns (b) If a load resistor across the secondary draws a current of 1.70 A, what is the current in the primary, assuming ideal conditions? A (c) If the transformer actually has an efficiency of 90.0%, what is the current in the primary when the secondary current is 1.20 A? A Need Help? Read It Watch It Submit Answer
