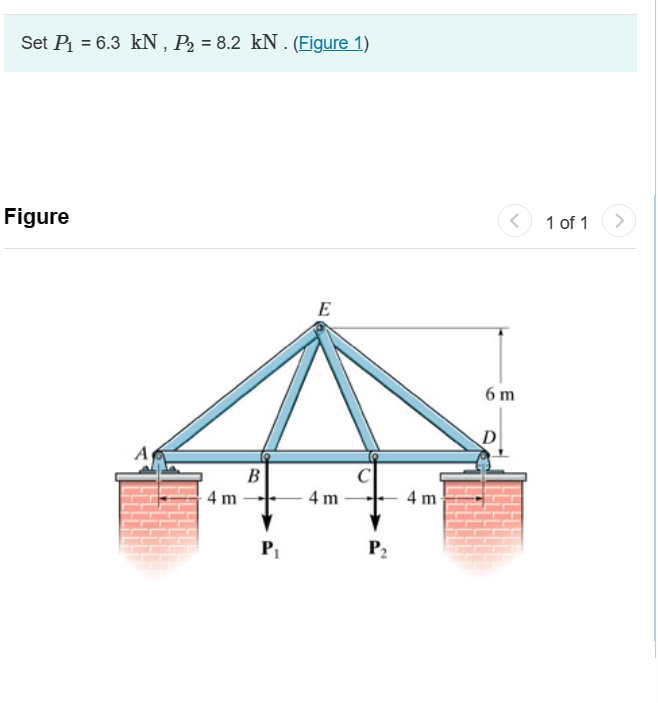

Question: Set P 1 = 6 . 3 k N , P 2 = 8 . 2 k N . ( Figure 1 ) Determine the

Set P1=6.3kN,P2=8.2kN.(Figure 1)
Determine the force in the member AB
, and state if the member is in tension or compression.
Determine the force in the member AE
, and state if the member is in tension or compression.
Determine the force in the member BC
, and stDetermine the force in the member BE
, and state if the member is in tension or compression.ate if the member is in tension or compression.
Determine the force in the member CD
, and state if the member is in tension or compression.
Determine the force in the member CE
, and state if the member is in tension or compression.
Determine the force in the member DE
, and state if the member is in tension or compression.
Set P 1 = 6 . 3 k N , P 2 = 8 . 2 k N . ( Figure

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
