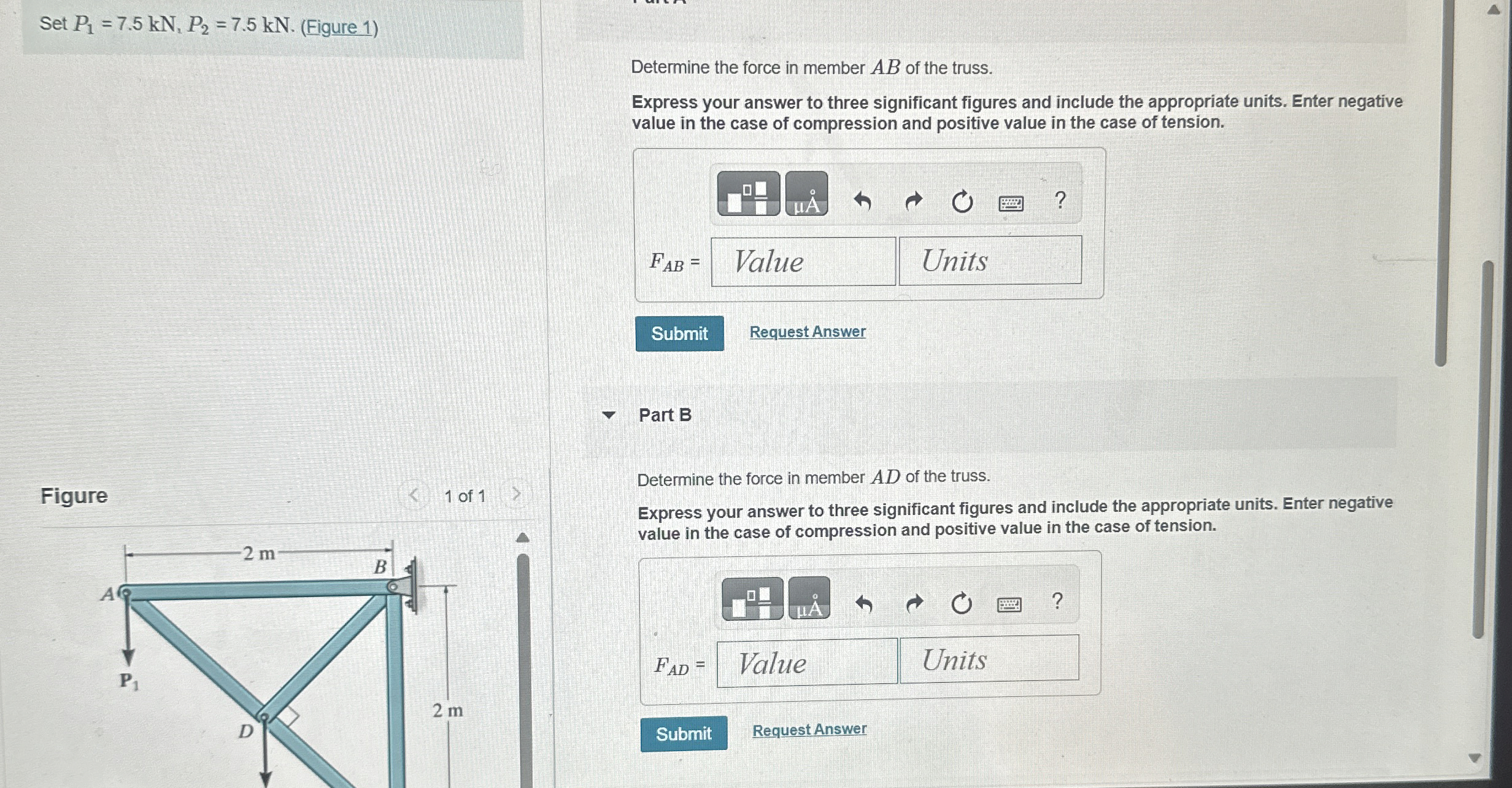

Question: Set P 1 = 7 . 5 k N , P 2 = 7 . 5 k N . ( Figure 1 ) Determine the

Set

P_{1} = 7.5 k N, P_{2} = 7.5 k N . (

Figure

1)

Determine the force in member

A B

of the truss.

Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension.

F_{A B} =

Request Answer

Part B

Determine the force in member

A D

of the truss.

Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension.

F_{A D} =

Value

Request Answer

Set P 1 = 7 . 5 k N , P 2 = 7 . 5 k N . ( Figure

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
