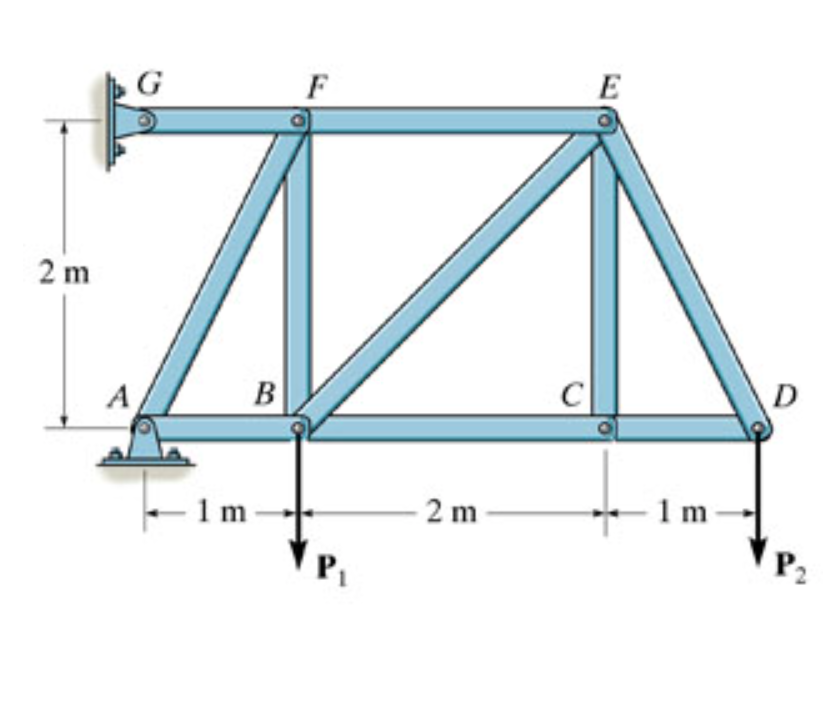

Question: Set P 1 = 9 kN and P 2 = 1 4 kN . ( Figure 1 ) . Determine the force in member AB

Set P1
=9 kN
and P2
=14 kN
.(Figure 1).Determine the force in member AB
, and state if the member is in tension or compression.Determine the force in member AF
, and state if the member is in tension or compression.Determine the force in member BC
, and state if the member is in tension or compression.Determine the force in member BE
, and state if the member is in tension or compression.Determine the force in member BF
, and state if the member is in tension or compression.Determine the force in member CD
, and state if the member is in tension or compression.Determine the force in member CE
, and state if the member is in tension or compression.Determine the force in member DE
, and state if the member is in tension or compression.
Set P 1 = 9 kN and P 2 = 1 4 kN . ( Figure 1 ) .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
