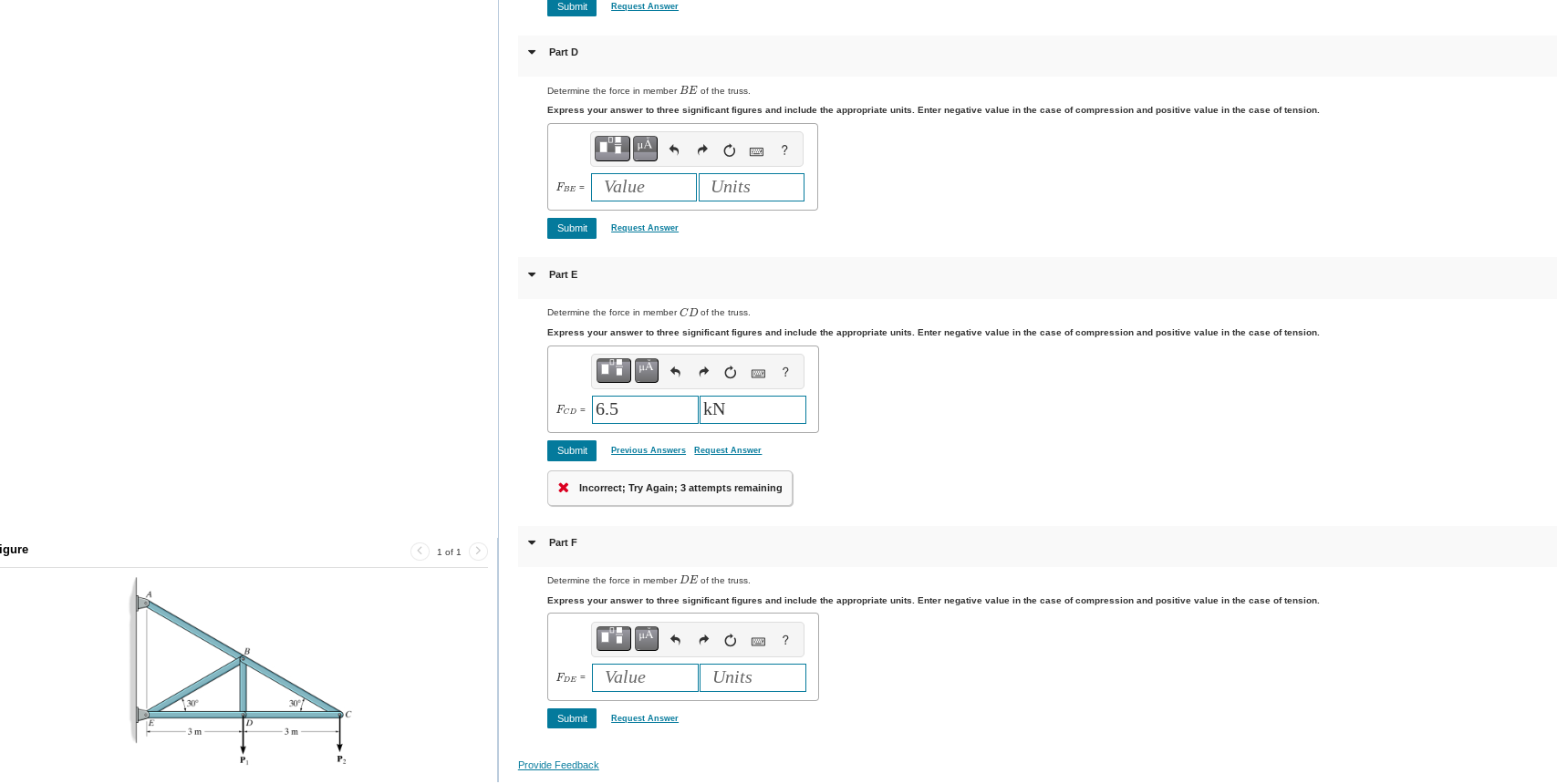

Question: Set P 1 = P 2 = 6 . 5 kN . Determine the force in member AB of the truss. Express your answer to

Set P

1 =

2 = 6.5

.

Determine the force in member AB of the truss.

Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. Determine the force in member BC of the truss.

Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension.

Determine the force in member

\ (

B E

\)

of the truss.

Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension.

\ [

_{

B E

} =

\]

Determine the force in member

\ (

C D

\)

of the truss.

Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension.

Previous Answers Request Answer

Incorrect; Try Again;

3

attempts remaining

Part F

Determine the force in member

\ (

D E

\)

of the truss.

Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension.

Set P 1 = P 2 = 6 . 5 kN . Determine the force in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
