Question: Set P = 4 k N ( Figure 1 ) Figure Part E Determine the force in member C D of the truss Express your

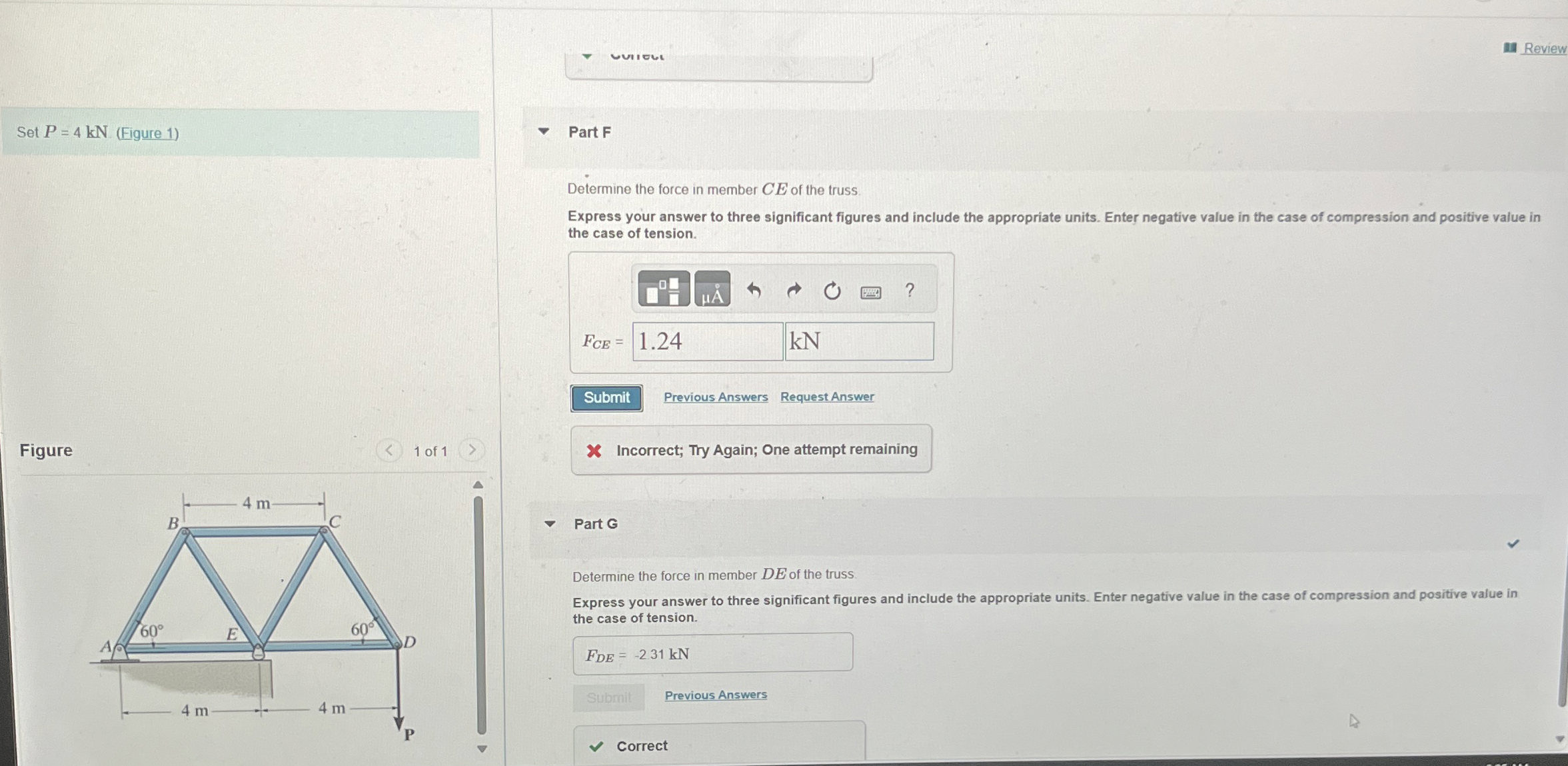

Set P=4kN(Figure 1)
Figure
Part E
Determine the force in member CD of the truss
Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in
the case of tension.
FCD=462kN
Previous Answers
Set P=4kN(Figure 1)
Figure
1 of 1
FCE=
Previous Answers
Request Answer
Incorrect; Try Again; One attempt remaining
Part G
Determine the force in member DE of the truss.
Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in
the case of tension.
FD
