Shift Operations

Write a verilog code

Do not rely on built in functions in verilog

$\backslash$table$[[$OP#$,$Control Signals C$,$Operation$],[7,1000,$Circular right shift of A$],[8,1001,$Circular left shift of A$],[9,1010,$Right shift of A with feed in $0],[10,1011,$Left shift of A with feed in $0],[11,1100,$Right shift of A with MSB replication$],[12,1101,$Left shift of A with LSB replication$]]$

Help

Combinational.pdf

f $3$

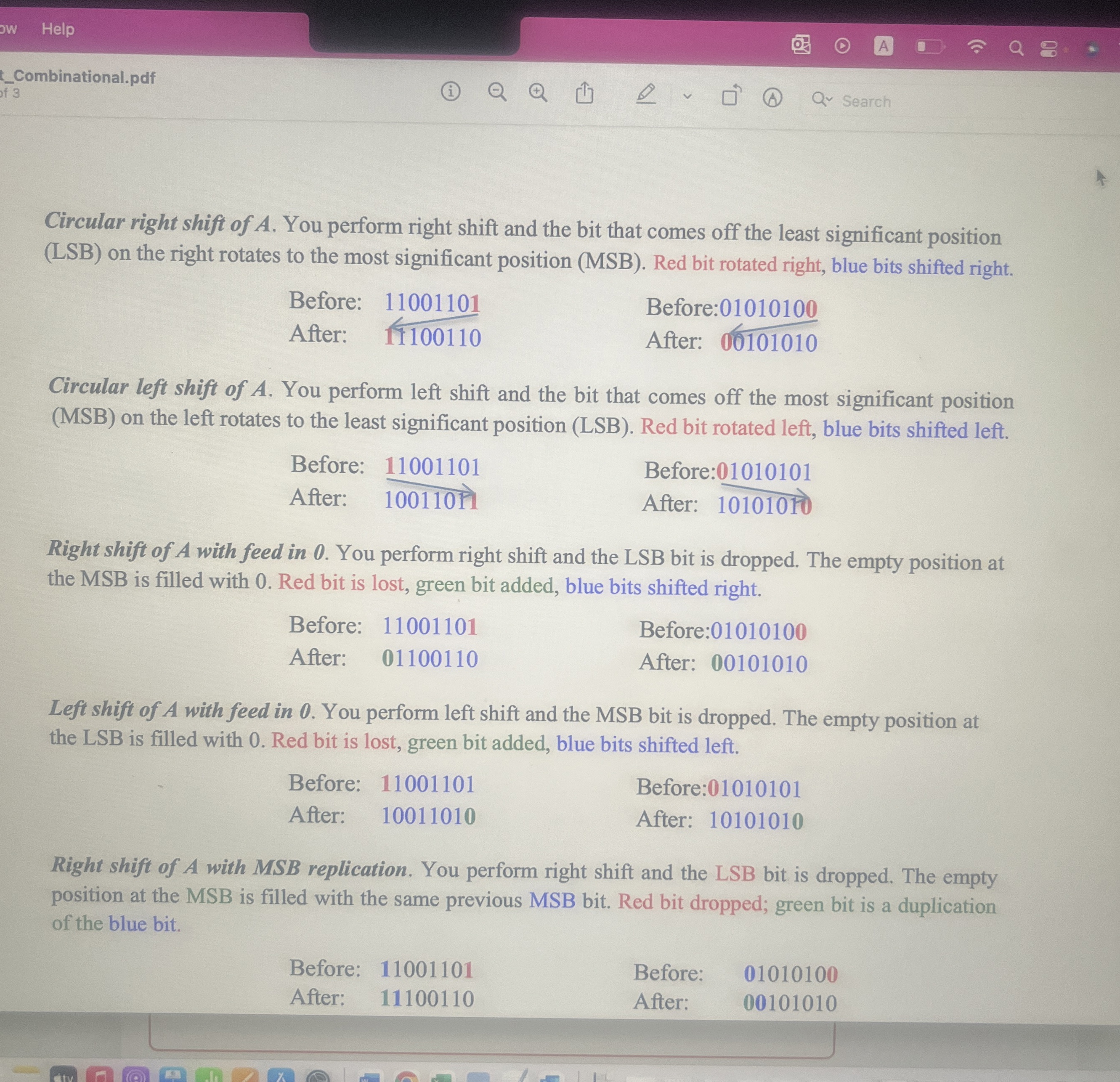

Circular right shift of $A.$ You perform right shift and the bit that comes off the least significant position $($LSB$)$ on the right rotates to the most significant position $($MSB$).$ Red bit rotated right, blue bits shifted right.

$\backslash$table$[[$Before: $11001101,$Before:$01010100],[$After: $11100110,$After: $00101010]]$

Circular left shift of $A.$ You perform left shift and the bit that comes off the most significant position $($MSB$)$ on the left rotates to the least significant position $($LSB$).$ Red bit rotated left, blue bits shifted left.

Before: $11001101$ Before:$01010101$

After: $10011011$ After: $10101010$

Right shift of A with feed in $0.$ You perform right shift and the LSB bit is dropped. The empty position at the MSB is filled with $0.$ Red bit is lost, green bit added, blue bits shifted right.

Before: $11001101$

Before:$01010100$

After: $01100110$

After: $00101010$

Left shift of A with feed in $0.$ You perform left shift and the MSB bit is dropped. The empty position at the LSB is filled with $0.$ Red bit is lost, green bit added, blue bits shifted left.

Before: $11001101$

Before:$01010101$

After: $10011010$

After: $10101010$

Right shift of A with MSB replication. You perform right shift and the LSB bit is dropped. The empty position at the MSB is filled with the same previous MSB bit. Red bit dropped; green bit is a duplication of the blue bit.

Before: $11001101$

Before: $,01010100$

After: $11100110$

After: $00101010$
