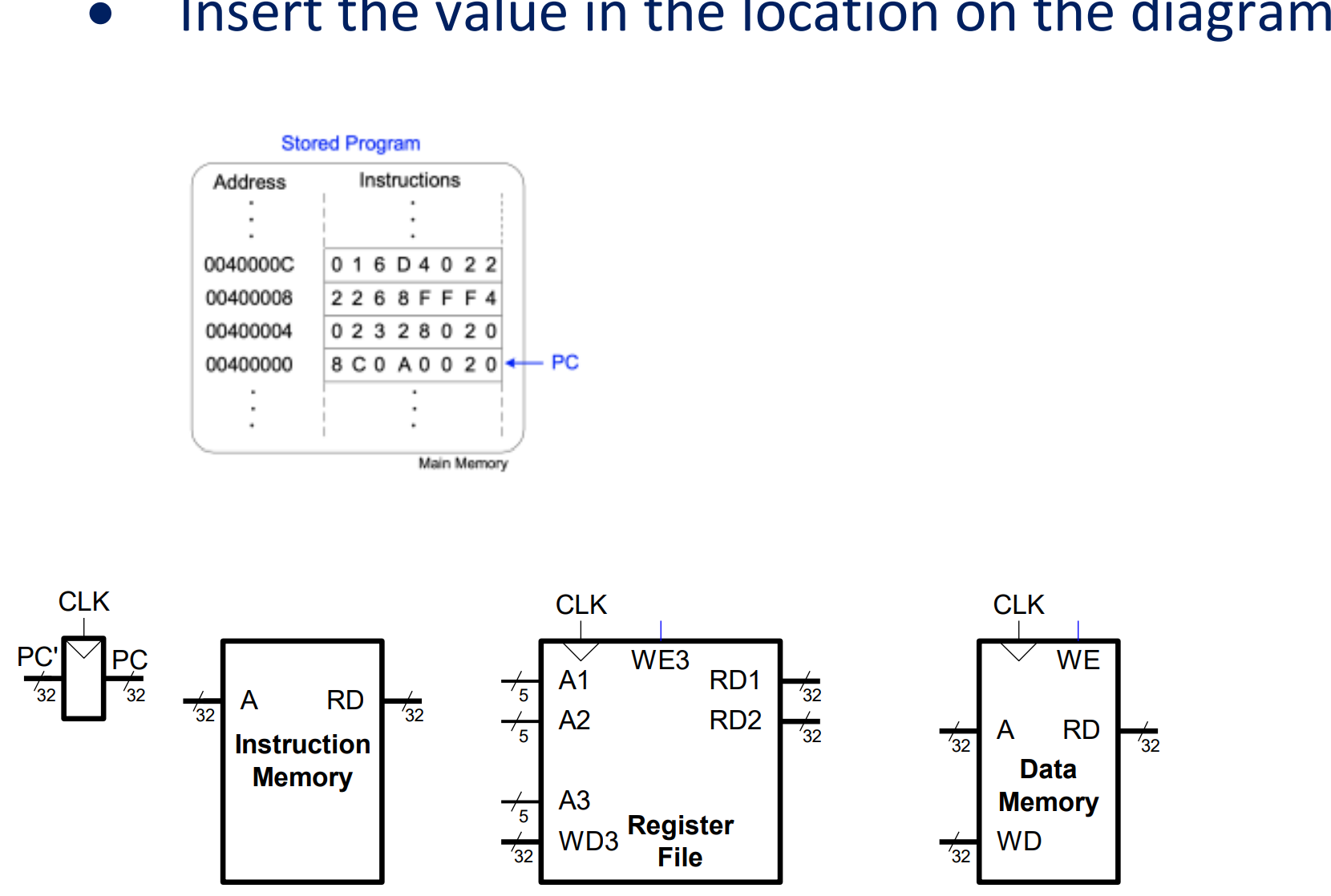

Question: Show the Data path this instruction will take. Insert the value in the location on the diagram ( Show what the PC is going to

Show the Data path this instruction will take. Insert the value in the location on the diagram

(

Show what the PC is going to execute if it were pointing to address

00400008) .

SIMPLY SHOW THE PATH IT WILL TAKE WITH ARROWS ON THE DIAGRAM PLEASE. NO NEED TO SHOW BIT WORK IN REGISTERS. Thanks a lot!Insert the value in the location on the diagram.

Show the Data path this instruction will take. Insert the value

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Show the Data path this instruction will take. Insert the value in the location on the diagram ( Show what the PC is going to execute if it were pointing to address 0 C at the very top ) . SIMPLY...

Show the Data path this instruction will take. Insert the value in the location on the diagram ( what the PC is going to execute / pointing to . SIMPLY SHOW THE PATH IT WILL TAKE PLEASE ON THE...

Insert the value in the location on the diagram. Show the data path in the diagram of the instruction at address 0 0 4 0 0 0 0 8 ( pretending this is the instruction PC is pointing to ) HINT: Convert...

b- Assume that the current value of PC=100H, and there are the following instructions resident in the memory, which are stored on four consecutive locations 100H, 101H 103, and 104Hin: 1- Load...

PLEASE ANSWER ALL! I WANT TO CHECK WITH MY WORK! Assume that the current value of PC=100H, and there are the following instructions resident in the memory, which are stored on four consecutive...
