Question: Shown below is the activity relationship chart along with the space requirements for each of the six cells in a small auto parts manufacturing facility.

Shown below is the activity relationship chart along with the space requirements for each of the six cells in a small auto parts manufacturing facility.

.

Construct relationship and space relationship diagrams.

b Design the corresponding block layout using SLP

.

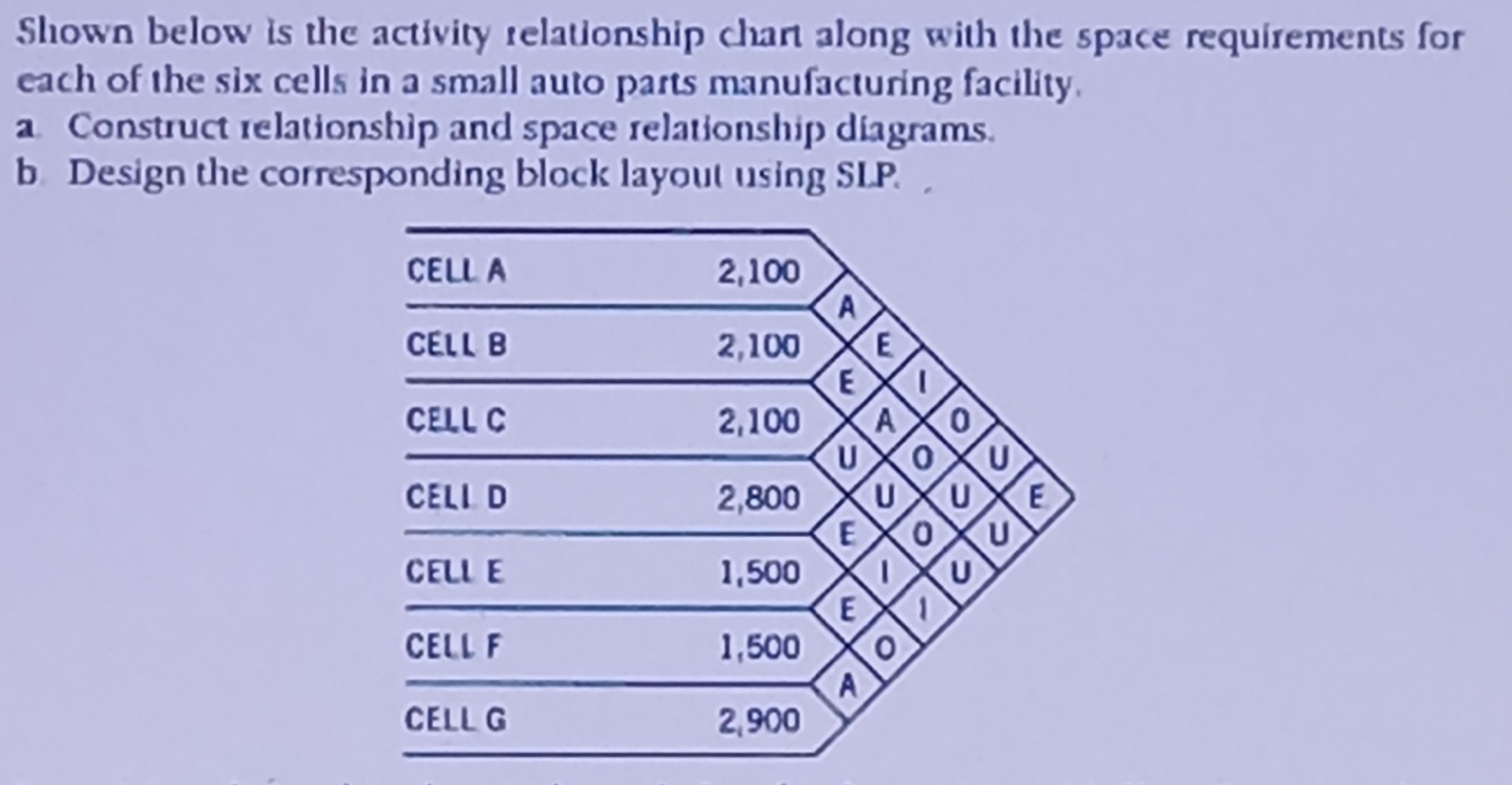

Shown below is the activity relationship chart

Step by Step Solution

There are 3 Steps involved in it
