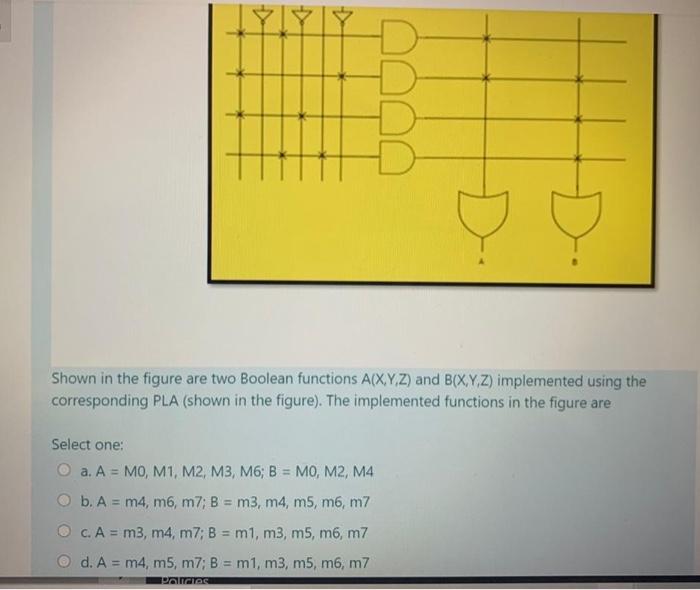

Question: Shown in the figure are two Boolean functions A(X,Y,Z) and B(X,Y,Z) implemented using the corresponding PLA (shown in the figure). The implemented functions in the

Shown in the figure are two Boolean functions A(X,Y,Z) and B(X,Y,Z) implemented using the corresponding PLA (shown in the figure). The implemented functions in the figure are Select one: O a. A = MO, M1, M2, M3, M6; B = MO, M2, M4 b. A = m4, m6, m7; B = m3, m4, m5, m6, m7 C. A = m3, m4, m7; B = m1, m3, m5, m6, m7 d. A = m4, m5, m7; B = m1, m3, m5, m6, m7 PASTASE
